Tektronix

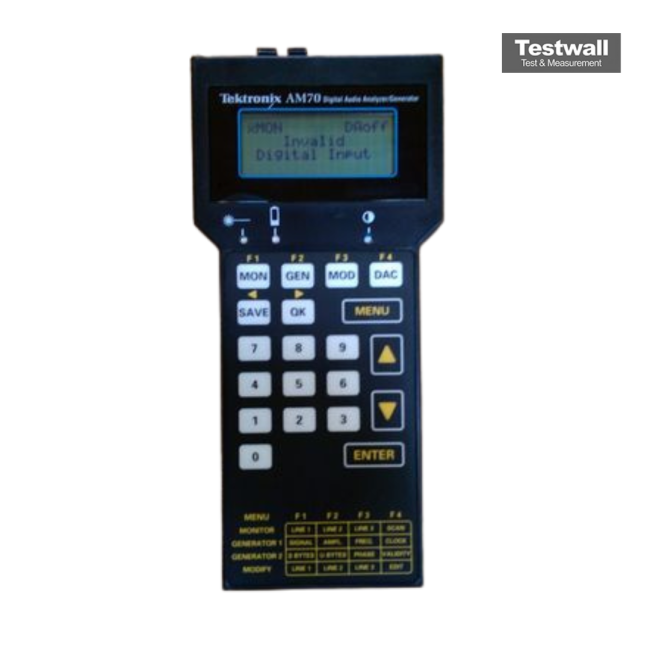

Tektronix AM70
Programmable Digital Audio Analyser & Generator
Audio Measurement Set Measurement Function
20 Hz to 20 kHz Frequency Range
Greater than 110 dB Dynamic Range
-100 dB to 0 dB THD+N Measurement Range
-60 dBu to +24 dBu Signal Generator Output Level
| Attribute | Value |
|---|---|
| Measurement Function | Audio Measurement Set |
| Frequency Range | 20 Hz to 20 kHz |
| Dynamic Range | Greater than 110 dB |
| THD+N Measurement Range | -100 dB to 0 dB |
| Signal Generator Output Level | -60 dBu to +24 dBu |
| Input Impedance | 100 kΩ balanced |
| Output Impedance | 50 Ω balanced |
| Display | Built-in LCD display with graphical interface |
| Interface/Connectivity | GPIB and RS-232 remote control interfaces |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Model | AM70 |
|---|
The Tektronix AM70 is a professional-grade audio monitor designed for video and audio broadcast environments. It features analog audio signal monitoring, stereo support, and adjustable level indicators in a robust, rack-mountable design.
Ideal for real-time assessment of audio quality and levels, the AM70 provides both visual and audio outputs for precise monitoring across various broadcast setups.
Testwall can supply the used Tektronix AM70, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AM70.
