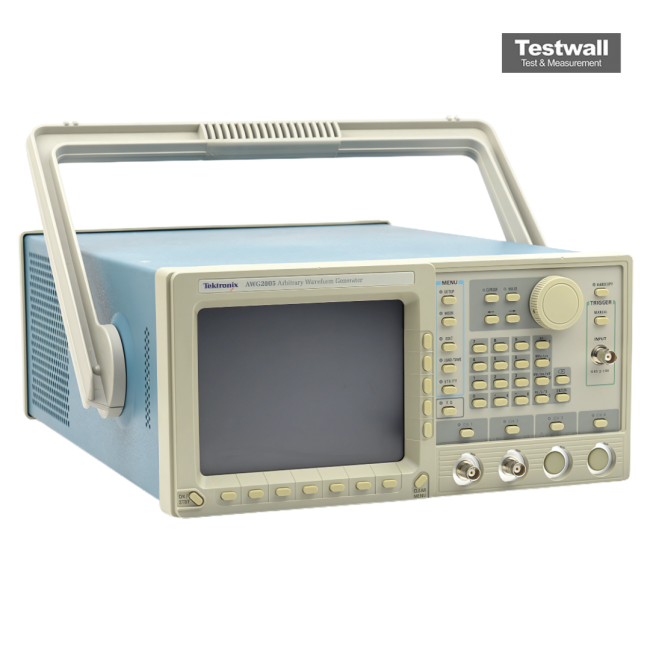

Tektronix AWG2005
| Attribute | Value |
|---|---|
| Number of Channels | 2 Analog Output Channels + 2 Marker Outputs per Channel |
| Sample Rate | Up to 20 MS/s |
| Vertical Resolution | 12 bits |
| Waveform Memory Depth | Up to 4 M points per channel |
| Output Frequency Range | DC to 5 MHz |
| Output Amplitude Range | 20 mVp-p to 2 Vp-p into 50 Ω |
| Output Impedance | 50 Ω |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, DC, and User-Defined Arbitrary Waveforms |
| Display | Built-in LCD display for waveform visualization and parameter settings |
| Interface / Connectivity | GPIB (IEEE-488) Interface for remote control and programmability |
Tektronix AWG2005 Options:
- AWG2005 - 04 - 24-Bit TTL Digital Data Out
- AWG2005 - 05 - Enhanced clock frequency resolution (7 digits), improved accuracy (5 ppm), and sweep capability (linear, log, arbitrary sweep types)
| Model | AWG2005 |
|---|
The Tektronix AWG2005 offers a 20 MS/s clock rate, 64 k record length per channel, and up to four independent 10 V outputs with 12-bit resolution. Options extend capabilities with TTL digital data, user-defined sweep generation, and FFT editing for advanced signal simulation and testing scenarios.
Ideal for complex waveform simulations, the AWG2005 supports real-time sequencing and formula-entry waveform generation, with full programmability via front panel, RS-232, and GPIB interfaces.
Testwall can supply the used Tektronix AWG2005, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG2005.
