Tektronix AWG2040
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 1 GS/s per channel |
| Vertical Resolution | 10-bit DAC resolution |
| Memory Depth | Up to 4 Megasamples per channel (standard), expandable to 16 Megasamples |
| Output Amplitude | 20 mV to 2 V peak-to-peak into 50 Ω |
| Frequency Range | DC to 400 MHz analog bandwidth |
| Clock Reference | Internal and external clock reference; external reference input 10 MHz |
| Waveform Types | Arbitrary, sine, square, triangle, ramp, pulse, and user-defined waveforms |
| Trigger Inputs | External trigger input with adjustable trigger level; supports internal and external triggering modes |
| Interface & Connectivity | GPIB (IEEE-488.2) and RS-232 interfaces for remote control and programming |
| Model | AWG2040 |
|---|

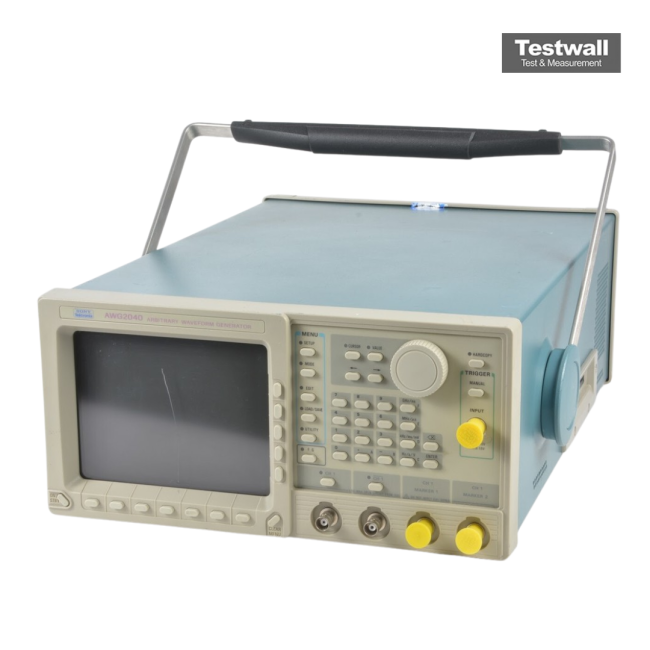

The Tektronix AWG2040 is a 1 GS/s Programmable Waveform Generator designed for precision signal creation. It features a 5.2" x 3.9" display, supports arbitrary, pulse, ramp, sine, square, and triangle waveforms, and delivers a 1 GSa/s sampling rate with a waveform length of up to 1,000,000 points. With 0.001% frequency accuracy, 7-digit resolution, and 0.0001% output accuracy, it is ideal for demanding signal testing environments.
It includes one output channel, auxiliary I/O, and a user-friendly UNIX interface with NOVRAM and FDD storage. The unit offers ±2V output, 50 Ohm impedance, and supports universal power input with a 3V battery backup.
Testwall can supply the used Tektronix AWG2040, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG2040.
