Tektronix AWG2041
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Sample Rate | 1 GS/s |
| Vertical Resolution | 10 bits |
| Memory Depth per Channel | 4 Megasamples |
| Frequency Range | DC to 400 MHz |
| Output Amplitude | 2 mVp-p to 2 Vp-p into 50 Ω |
| Output Impedance | 50 Ω |
| Digital Output Channels | 16 channels (TTL/ECL compatible) |
| Waveform Types | Arbitrary, Sine, Square, Triangle, Ramp, Pulse, DC, Noise, and user-defined waveforms |
| Interface/Connectivity | GPIB (IEEE-488.2), RS-232 |
| Model | AWG2041 |
|---|

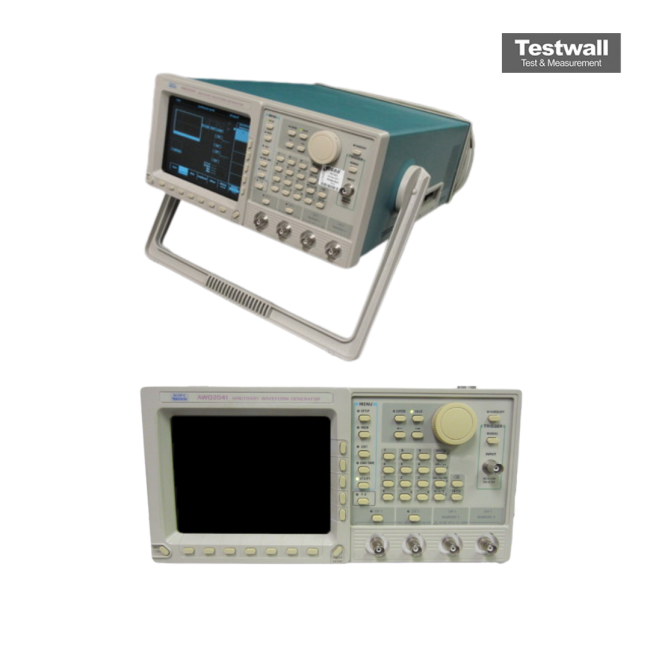

The Tektronix AWG2041 is a benchtop 1GS/s Arbitrary Waveform Generator with one channel, supporting waveforms such as sine, square, triangle, pulse, ramp, and arbitrary types up to 500 MHz. It features an 8-bit vertical resolution, 1,000,000-point waveform memory, 0.001% frequency accuracy, and a 50 Ohm output impedance. It includes advanced functionalities like real-time waveform sequencing, frequency domain editing, region shift, and direct DSO waveform transfers.
This generator supports trigger modes including Auto, Step, Stop, and Trigger, and connects via GPIB and RS232 with storage through FDD. The AWG2041 provides a ±2V output range and a proprietary user interface, making it ideal for creating complex and precise signal simulations.
Testwall can supply the used Tektronix AWG2041, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG2041.
