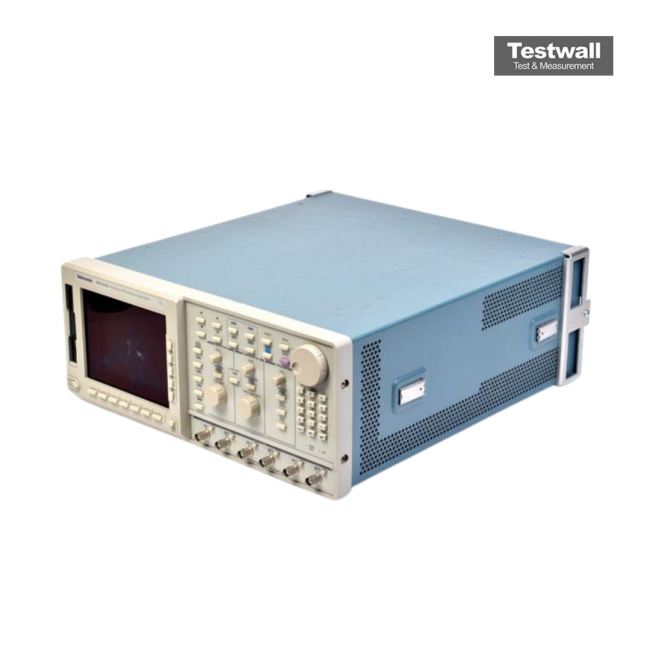

Tektronix AWG430
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 200 MS/s |
| Vertical Resolution | 10-bit DAC resolution |
| Memory Depth | Up to 64K points per channel |
| Frequency Range | DC to 50 MHz analog bandwidth |
| Output Amplitude | 20 mVp-p to 2 Vp-p into 50 Ω |
| Waveform Types | Arbitrary, sine, square, triangle, pulse, ramp, and user-defined waveforms |
| Digital Outputs | 2 marker outputs per channel (4 total), TTL-level compatible |
| Interface/Connectivity | GPIB (IEEE 488.2) interface for remote control and programming |
| Operating System / Software | Compatible with ArbExpress waveform creation and editing software |
| Model | AWG430 |
|---|
The Tektronix AWG430 is a high-resolution arbitrary waveform generator featuring three independent channels, 16-bit vertical resolution, and a 200 MS/s sample rate. It supports up to 16 million points per channel, ±2V output into 50Ω, with < ±100 ps skew and advanced modulation capabilities including I/Q, PSK, and QAM.
Ideal for use in communications, aerospace, defense, and semiconductor testing, it enables precise signal simulation and advanced waveform control with built-in noise generation and remote operability.
Testwall can supply the used Tektronix AWG430, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG430.
