Tektronix

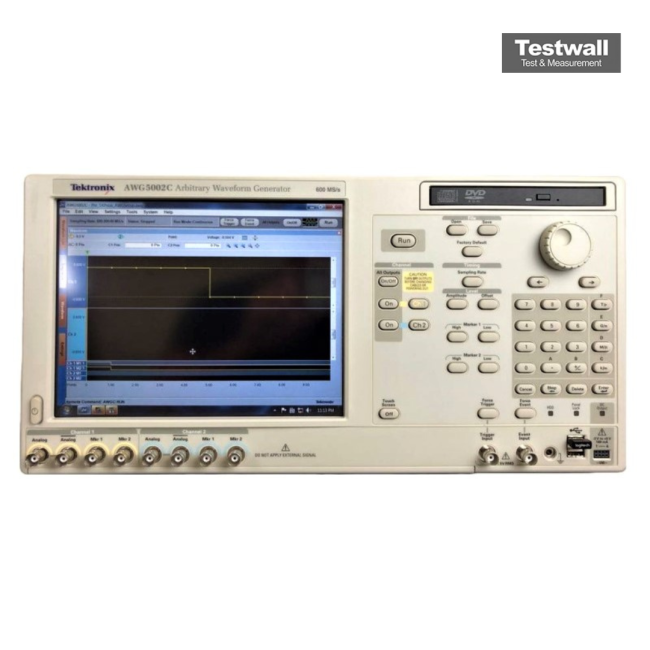

Tektronix AWG5002
Arbitrary Waveform Generator
2 analog output channels Number of Channels
Up to 600 MS/s per channel Sample Rate
14-bit DAC resolution Vertical Resolution
64 MSamples per channel Waveform Memory
240 MHz Analog Output Bandwidth
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 600 MS/s per channel |
| Vertical Resolution | 14-bit DAC resolution |
| Waveform Memory | 64 MSamples per channel |
| Analog Output Bandwidth | 240 MHz |
| Amplitude Range | 50 mVp-p to 2 Vp-p into 50 Ω |
| Marker Outputs | 2 marker outputs per channel (4 total) |
| Clock Reference | Internal and external clock reference supported |
| Connectivity | USB, LAN (Ethernet), and GPIB interfaces |
| Operating System | Windows XP Embedded |
| Model | AWG5002 |
|---|
The Tektronix AWG5002 is a high-performance 2-channel arbitrary waveform generator offering a 1.2 GS/s sampling rate, 14-bit resolution, and deep waveform memory. It supports synchronized multi-channel output for advanced signal simulation and research applications.
Its dual-channel design enables precise, complex signal creation ideal for communication systems and experimental setups requiring detailed signal control.
Testwall can supply the used Tektronix AWG5002, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5002.
