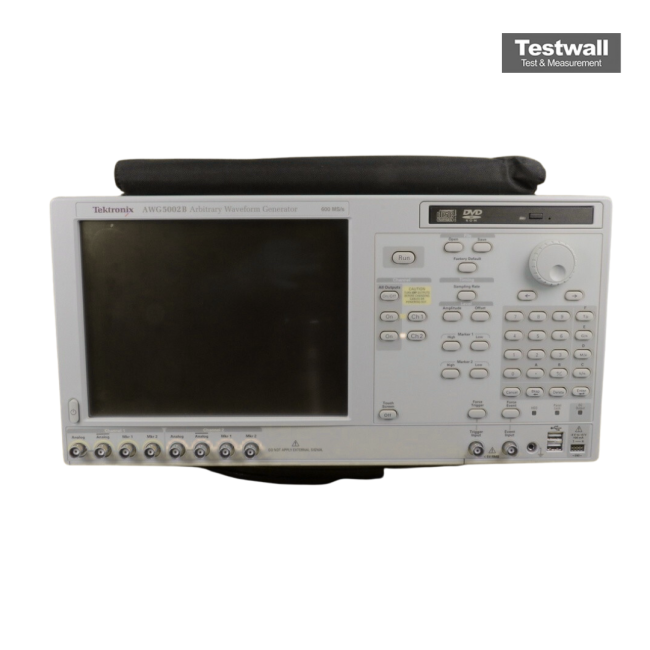

Tektronix AWG5002B
Arbitrary Waveform Generator
2 analog output channels Number of Channels
Up to 600 MS/s per channel Sample Rate
14-bit DAC resolution Vertical Resolution
240 MHz Analog Bandwidth
32 MSamples per channel (standard), expandable to 64 MSamples Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 600 MS/s per channel |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Bandwidth | 240 MHz |
| Waveform Memory | 32 MSamples per channel (standard), expandable to 64 MSamples |
| Output Amplitude | 50 mVpp to 2 Vpp into 50 Ω load |
| Marker Outputs | 4 marker outputs (2 per channel), 1 Vpp into 50 Ω |
| Clock Reference | Internal or external clock reference; external reference input 10 MHz to 100 MHz |
| Connectivity & Interface | GPIB, USB, and LAN (LXI Class C compliant) |
| Operating System / Platform | Windows XP Embedded; includes ArbExpress waveform creation software |
| Model | AWG5002B |
|---|
The Tektronix AWG5002B offers enhanced waveform control and triggering, building on the AWG5002's capabilities. With a 1.2 GS/s sample rate, dual synchronized outputs, and large memory, it supports wideband signal testing for radar and satellite systems.
Its Windows-based GUI simplifies programming while advanced trigger modes optimize testing precision for complex scenarios.
Testwall can supply the used Tektronix AWG5002B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5002B.
