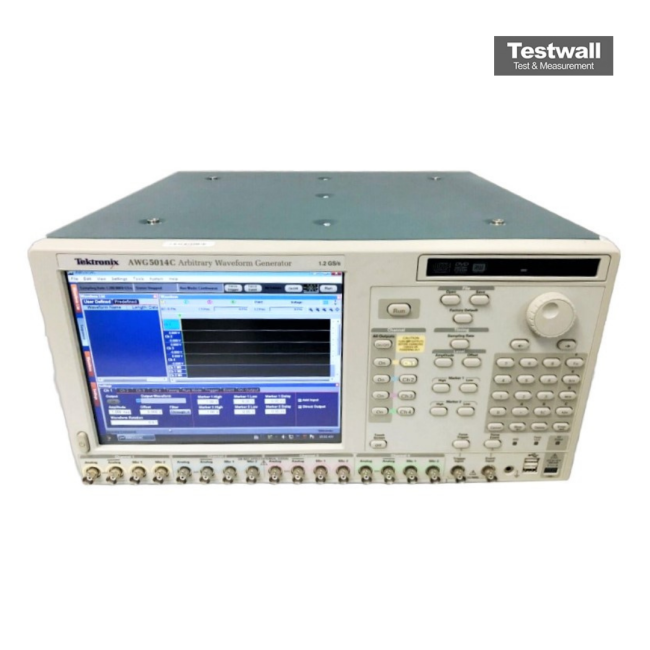

Tektronix AWG5014C
| Attribute | Value |
|---|---|
| Sample Rate | Up to 1.2 GS/s |
| Number of Channels | 4 analog output channels |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Output Bandwidth | 550 MHz |
| Waveform Memory | Up to 32 million samples per channel (with optional memory upgrade) |
| Amplitude Range | 20 mVpp to 2 Vpp into 50 Ω |
| Marker Outputs | 2 markers per channel (8 total), 1 Vpp into 50 Ω |
| Clock Reference | Internal or external reference clock; 10 MHz external reference input |
| Sequence Length | Up to 16,383 steps per sequence |
| Operating System / Interface | Windows XP Embedded; GPIB, USB, and LAN (LXI Class C) connectivity |
| Model | AWG5014C |
|---|
The Tektronix AWG5014C Arbitrary Waveform Generator features a 1.2 GS/s sample rate, 14-bit resolution, and four channels, delivering high-fidelity signal generation. With 16M points per channel and Windows 7 OS integration, it is ideal for complex signal simulations. It includes synchronized marker and digital data outputs, enhancing flexibility across diverse test scenarios.
This generator supports demanding applications in wireless communication, defense electronics, and semiconductor testing. Its open Windows platform streamlines integration with third-party software tools.
Testwall can supply the used Tektronix AWG5014C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5014C.
