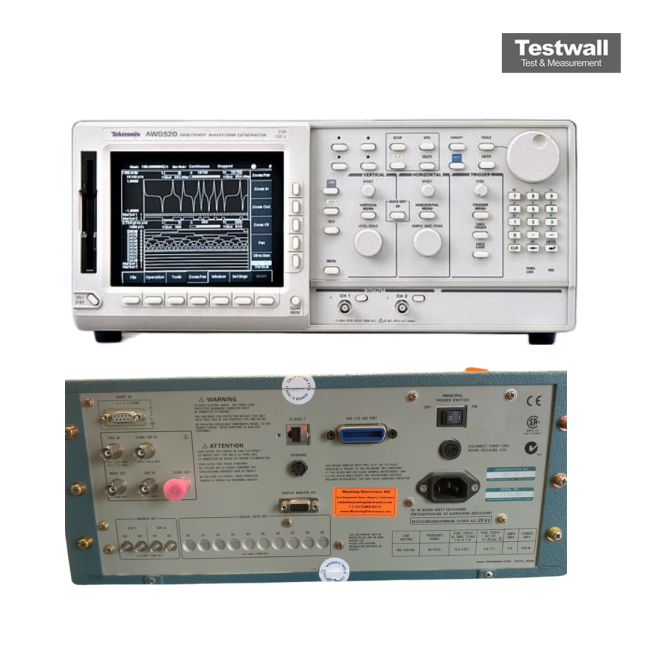

Tektronix AWG520
| Attribute | Value |
|---|---|
| Sample Rate | 1 GS/s maximum sample rate |
| Vertical Resolution | 10-bit DAC resolution |
| Waveform Memory Depth | Up to 4 Megapoints per channel waveform memory |
| Number of Channels | 2 analog output channels |
| Output Amplitude | 2 Vp-p into 50 Ω (DC coupled) |
| Frequency Range | DC to 400 MHz analog bandwidth |
| Clock Reference | Internal and external clock reference supported |
| Marker Outputs | 2 marker outputs per channel (4 total), 500 mV to 1.2 V amplitude range |
| Waveform Sequencing | Waveform sequencing and looping capability with up to 8,000 sequence steps |
| Interface/Connectivity | GPIB and Ethernet interfaces for remote control and data transfer |
Tektronix AWG520 Options:
- AWG520 - Opt. 03 - CH. 2 10-Bit output up to 1 GHz
- AWG520 - Opt. 10 - Flashdisk (128 MB) and standby switch – removes HDD (best suited for ATE and system usage requiring 7x24 hour operation)
- AWG520 - Opt. 11 - Removable Hard Disk (exclusive to Option 10 and/or Option 3)
- AWG520 - Opt. 1R - Rackmount
- AWG520 - Opt. A0 - North America Power
- AWG520 - Opt. A1 - Universal EURO Power
- AWG520 - Opt. A2 - United Kingdom Power
- AWG520 - Opt. A3 - Australia Power
- AWG520 - Opt. A4 - 240 V, North America Power
- AWG520 - Opt. A5 - Switzerland Power
- AWG520 - Opt. C3 - Calibration Service 3 Years
- AWG520 - Opt. C5 - Calibration Service 5 Years
- AWG520 - Opt. D1 - Calibration Data Report
- AWG520 - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- AWG520 - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- AWG520 - Opt. R3 - Repair Service 3 Years
- AWG520 - Opt. R5 - Repair Service 5 Years
| Model | AWG520 |
|---|
The Tektronix AWG520 Arbitrary Waveform Generator delivers exceptional performance with two independent 10‑bit resolution output channels, a graphical editing display, and options such as the 10‑channel 1 GHz digital data port (Opt. 03). Its extensive built‑in real‑time noise and jitter generation, external clock input, and real‑time sequencing enable creation of near‑infinite complex waveform lengths.
Designed for communications, optical, pulse‑modulated and real‑world noise simulation applications, the AWG520 replaces standard function and sweep generators and excels at advanced testing, from FSK/PSK/QAM encoding to EMP/EMI and power‑supply noise simulation.
Testwall offers the used Tektronix AWG520 with expert support and global delivery. The AWG520’s powerful editing, storage, and flexible waveform‑generation capabilities make it a standout option—backed by Testwall’s reliability and service commitment.
Testwall can supply the used Tektronix AWG520, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG520.
