Tektronix AWG5204
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Sample Rate | Up to 5 GS/s per channel |
| Analog Bandwidth | 2 GHz |
| Vertical Resolution | 16-bit DAC |
| Waveform Memory | Up to 2 Gsamples (shared across channels) |
| Amplitude Range | 50 mVp-p to 1 Vp-p (into 50 Ω) |
| Marker Outputs | 2 markers per channel (8 total) |
| Clock Reference | Internal/External 10 MHz reference; external clock input supported |
| Sequence Depth | Up to 16,383 sequence steps |
| Connectivity & Interface | USB, LAN (1000Base-T), Windows-based touchscreen interface |
Tektronix AWG5204 Options:
- AWG5204 - AWG5200-425 - 2.5 GS/s
- AWG5204 - AWG5200-450 - 5 GS/s (10 GS/s interpolated)
- AWG5204 - AWG5200-4DC - High Bandwidth Amplified outputs
- AWG5204 - AWG5200-4HV - High Voltage outputs
- AWG5204 - AWG5200-4AC - AC Amplified outputs
- AWG5204 - AWG5200-4DIGUP - Digital up conversion (requires AWG5200-450)
- AWG5204 - AWG5200-SEQ - Sequencing
- AWG5204 - AWG5204-ACCY01 - USB mouse, compact USB keyboard, touch screen stylus
- AWG5204 - Opt. A0 - North America power plug (115 V, 60 Hz)
- AWG5204 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AWG5204 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AWG5204 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AWG5204 - Opt. A4 - North America power plug (240 V, 50 Hz)
- AWG5204 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AWG5204 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AWG5204 - Opt. A10 - China power plug (50 Hz)
- AWG5204 - Opt. A11 - India power plug (50 Hz)
- AWG5204 - Opt. A12 - Brazil power plug (60 Hz)
- AWG5204 - Opt. A99 - No power cord
- AWG5204 - Opt. L0 - English manual
- AWG5204 - Opt. L5 - Japanese manual
- AWG5204 - Opt. L7 - Simplified Chinese manual
- AWG5204 - Opt. L8 - Traditional Chinese manual
- AWG5204 - Opt. L10 - Russian manual
- AWG5204 - Opt. L99 - No manual
- AWG5204 - Opt. C3 - Calibration Service 3 Years
- AWG5204 - Opt. C5 - Calibration Service 5 Years
- AWG5204 - Opt. CA1 - Single Calibration or Functional Verification
- AWG5204 - Opt. D1 - Calibration Data Report
- AWG5204 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AWG5204 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AWG5204 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- AWG5204 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- AWG5204 - Opt. IF - Upgrade Installation Service
- AWG5204 - Opt. R3 - Repair Service 3 Years (including warranty)
- AWG5204 - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | AWG5204 |
|---|

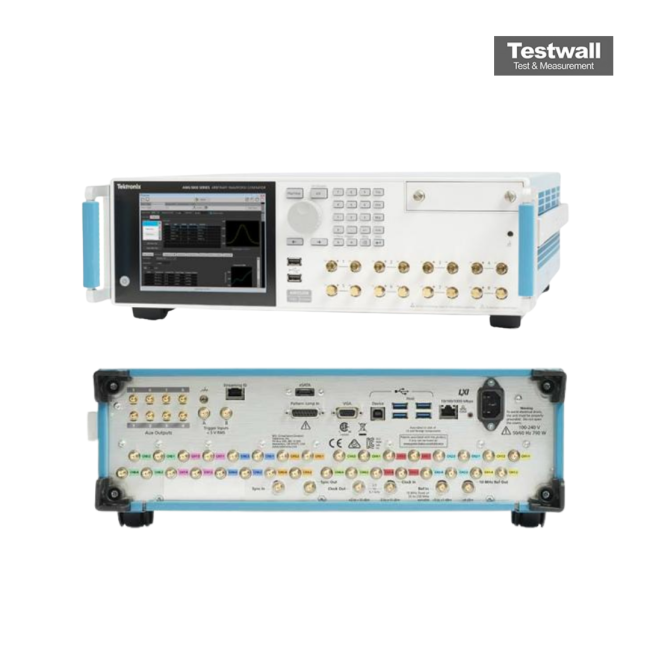

The Tektronix AWG5204 Arbitrary Waveform Generator features a 2 GHz analog bandwidth, 4 analog channels, 16-bit vertical resolution, and up to 10 GS/s sampling rate with interpolation. It delivers precise, high-fidelity signals essential for RF baseband and complex waveform applications.
With support for waveform plugins, MATLAB, and Excel integration, it offers unmatched flexibility for creating and reproducing custom waveforms, including digitally synthesized modulated signals.
Testwall can supply the used Tektronix AWG5204, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5204
