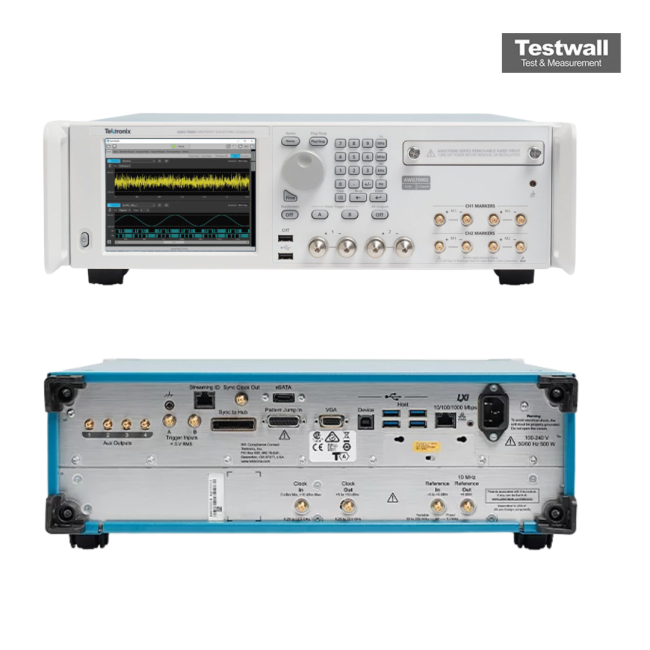

Tektronix AWG70001B
| Attribute | Value |
|---|---|
| Sample Rate | 50 GS/s |
| Analog Bandwidth | 20 GHz |
| Vertical Resolution | 10-bit DAC |
| Number of Channels | 1 analog output channel |
| Waveform Memory | 2 GSamples (standard), up to 16 GSamples (optional) |
| Amplitude Range | 50 mVp-p to 1 Vp-p into 50 Ω |
| Spurious Free Dynamic Range (SFDR) | >55 dBc typical at 1 GHz |
| Marker Outputs | 2 digital marker outputs per channel |
| Clock Reference | Internal/External reference clock, 10 MHz to 100 MHz external reference input |
| Operating System / Interface | Windows 10 embedded, touchscreen interface with USB, LAN (LXI), and PCIe connectivity |
Tektronix AWG70001B Options:
- AWG70001B - AWG70000-150 - 50 GS/s Sample Rate
- AWG70001B - AWG70000-MEM - Waveform record length expansion to 32 G
- AWG70001B - AC - Adds a single-ended AC coupled output connector with additional amplification and attenuation
- AWG70001B - SEQ - Adds Sequencing
- AWG70001B - STRID - Adds Streaming ID (requires AWG70001B SEQ)
- AWG70001B - A0 - North America power plug (115 V, 60 Hz)
- AWG70001B - A1 - Universal Euro power plug (220 V, 50 Hz)
- AWG70001B - A2 - United Kingdom power plug (240 V, 50 Hz)
- AWG70001B - A3 - Australia power plug (240 V, 50 Hz)
- AWG70001B - A4 - North America power plug (240 V, 50 Hz)
- AWG70001B - A5 - Switzerland power plug (220 V, 50 Hz)
- AWG70001B - A6 - Japan power plug (100 V, 50/60 Hz)
- AWG70001B - A10 - China power plug (50 Hz)
- AWG70001B - A11 - India power plug (50 Hz)
- AWG70001B - A12 - Brazil power plug (60 Hz)
- AWG70001B - A99 - No power cord
- AWG70001B - L0 - English manual
- AWG70001B - L5 - Japanese manual
- AWG70001B - L7 - Simplified Chinese manual
- AWG70001B - L8 - Traditional Chinese manual
- AWG70001B - L10 - Russian manual
- AWG70001B - L99 - No manual
- AWG70001B - C3 - Calibration Service 3 Years
- AWG70001B - C5 - Calibration Service 5 Years
- AWG70001B - D1 - Calibration Data Report
- AWG70001B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AWG70001B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AWG70001B - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- AWG70001B - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- AWG70001B - R3 - Repair Service 3 Years (including warranty)
- AWG70001B - R5 - Repair Service 5 Years (including warranty)
| Model | AWG70001B |
|---|
TEKTRONIX AWG70001B Arbitrary Waveform Generator
The Tektronix AWG70001B arbitrary waveform generators represent the cutting edge for sample rate, signal fidelity, and waveform memory, making them ideal for design, testing, and operations of complex components, systems and experiments. With up to 50 GS/s and 10-bit vertical resolution, it delivers the industry's best signal stimulus solution for easy generation of ideal, distorted, and "real-life" signals. Waveform creation plug-ins, which are optimized to work specifically the Tektronix AWG 70001B, provide specific waveform creation capabilities, while 3rd party solutions like MATLAB, Excel, or others, have the flexibility to create any waveform you desire.
When used in conjunction with the specific plugin, the Tektronix AWG70001B supports a wide range of modulation formats and simplifies the task of creating complex RF waveforms. The RF Generic, Radar, Multitone, OFDM, and Environment plug-in's easy to use graphical user interfaces integrate seamlessly with the user interface or remote PC application. The AWG70001B and the Radar plug-in are the perfect solution for creating complex radar signals. Modulation types such as LFM, Barker and Polyphase Codes, Step FM, and Nonlinear FM are easily created. For high-speed serial applications, the Tektronix AWG70001B offers the industry's best solution for addressing challenging signal stimulus issues faced by digital designers who need to verify, characterize, and debug complex digital designs.
Specifications for the TEKTRONIX AWG70001B Arbitrary Waveform Generator Include:
| Frequency Output | 20 GHz |
| Sample rate | 1.5 kS/s - 50 GS/s |
| Waveform memory | 2 GSamples (up to 32 GSamples) |
| DAC Resolution | 8-bit, 9-bit, or 10-bit |
