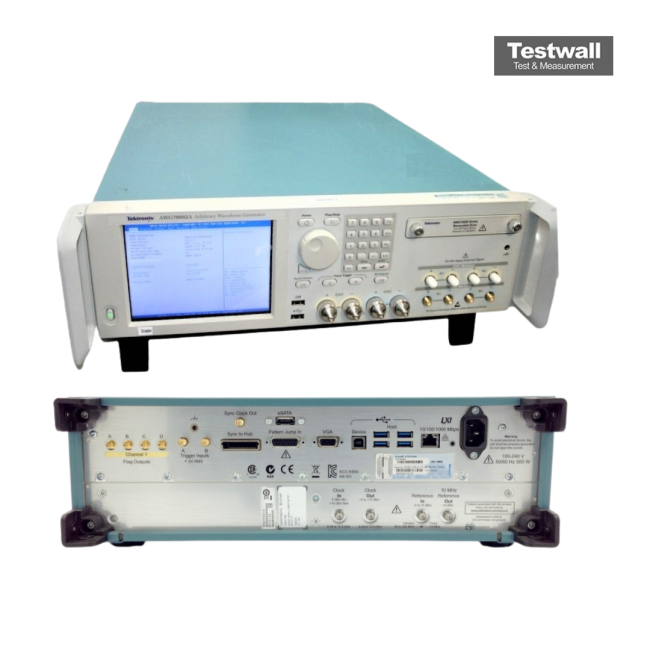

Tektronix AWG70002A
| Attribute | Value |
|---|---|
| Number of Channels | 2 analog output channels |
| Sample Rate | Up to 25 GS/s |
| Waveform Memory | 2 GSamples per channel |
| Vertical Resolution | 10-bit DAC resolution |
| Analog Bandwidth | 10 GHz |
| Amplitude Range | 50 mVpp to 1 Vpp (into 50 Ω) |
| Marker Outputs | 4 marker outputs (2 per channel) |
| Spurious-Free Dynamic Range (SFDR) | >55 dBc typical at 1 GHz |
| Operating System | Windows 10 (64-bit) |
| Connectivity / Interface | 10/100/1000BASE-T Ethernet, USB 3.0, PCIe |
| Model | AWG70002A |
|---|
The Tektronix AWG70002A offers 50 GS/s sample rate, 10-bit vertical resolution, and up to 16 GSample waveform memory, enabling creation of highly precise waveforms. It delivers wideband RF signal generation up to 20 GHz, synchronization for multi-channel setups, and an internal interface for direct waveform editing, all packed into a standalone, high-performance unit.
Ideal for defense, optical, serial data, and advanced research applications, it allows full control over complex waveform creation, distortion modeling, and signal playback using imported vectors from MATLAB or Excel.
Testwall can supply the used Tektronix AWG70002A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG70002A.
