Tektronix

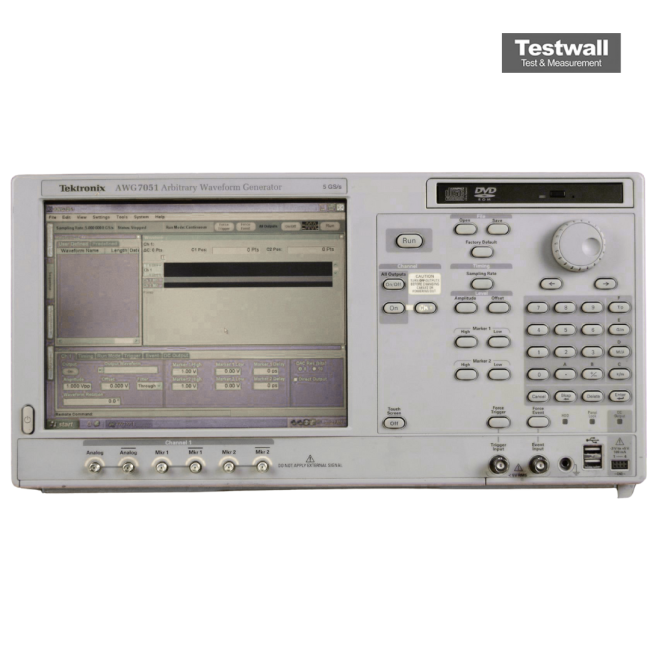

Tektronix AWG7051
Arbitrary Waveform Generator
Up to 5 GS/s Sample Rate
2 GHz Analog Bandwidth
10-bit DAC Vertical Resolution
32 MSamples (standard), up to 64 MSamples (optional) Waveform Memory
1 channel Number of Analog Output Channels
| Attribute | Value |
|---|---|
| Sample Rate | Up to 5 GS/s |
| Analog Bandwidth | 2 GHz |
| Vertical Resolution | 10-bit DAC |
| Waveform Memory | 32 MSamples (standard), up to 64 MSamples (optional) |
| Number of Analog Output Channels | 1 channel |
| Amplitude Range | 50 mVp-p to 1 Vp-p into 50 Ω |
| Marker Outputs | 2 marker outputs per channel |
| Clock Reference | Internal and external reference clock supported |
| Operating System | Windows XP Embedded |
| Connectivity | GPIB, USB, and LAN (10/100Base-T Ethernet) |
| Model | AWG7051 |
|---|
The Tektronix AWG7051 is a high-speed, single-channel arbitrary waveform generator delivering 5 GS/s output with 8-bit resolution and up to 2 Mpoints waveform length. Ideal for advanced signal simulations.
Equipped with sequence mode, it enables creation of complex custom signal patterns, making it highly suitable for aerospace and defense applications.
Testwall can supply the used Tektronix AWG7051, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG7051
