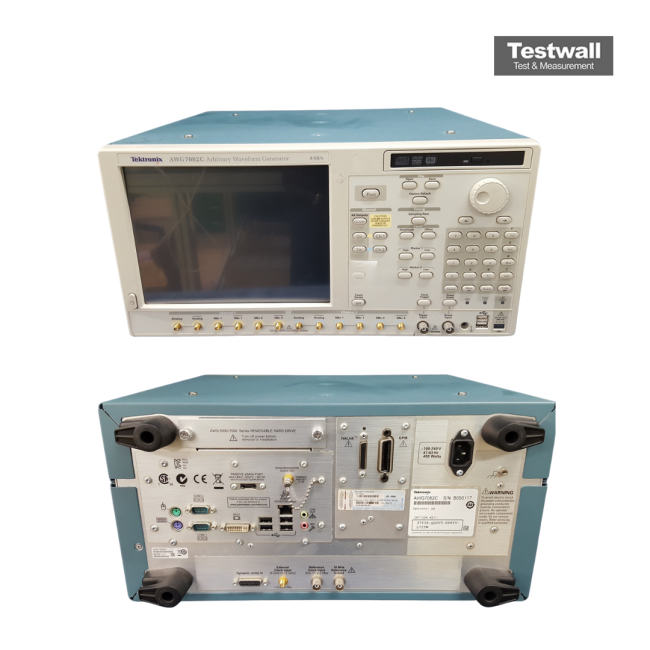

Tektronix AWG7082C
| Attribute | Value |
|---|---|
| Sample Rate | Up to 8 GS/s |
| Analog Bandwidth | 3 GHz |
| Vertical Resolution | 10-bit DAC |
| Number of Channels | 2 analog output channels |
| Waveform Memory | Up to 64 MSamples per channel |
| Amplitude Range | 50 mVp-p to 1 Vp-p into 50 Ω |
| Clock Reference | Internal and external reference clock support (10 MHz) |
| Marker Outputs | 2 markers per channel, 4 markers total |
| Sequence Depth | Up to 32,000 sequence steps |
| Operating System | Windows 7 Embedded (64-bit) |
| Model | AWG7082C |
|---|
The Tektronix AWG7082C features dual channels with sampling rates of 8.0 GS/s (16 GS/s interleaved) and 8/10‑bit resolution, supporting up to 32 M points of memory. It can generate complex wideband signals up to 9.6 GHz and modulation bandwidths of 5.3 GHz. Advanced waveform sequencing and dynamic‑jump capability allow infinite loops and conditional branching, enabling real‑world signal replication with deep memory and 54 dBc SFDR performance.
Ideal for RF/MW testing, the AWG7082C supports waveform imports from MathCAD, MATLAB, Excel, and more, with playback of oscilloscope and spectrum‑analyzer captures. Its integrated PC and intuitive UI streamline complex signal‑generation tasks.
Testwall can supply the used Tektronix AWG7082C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG7082C.
