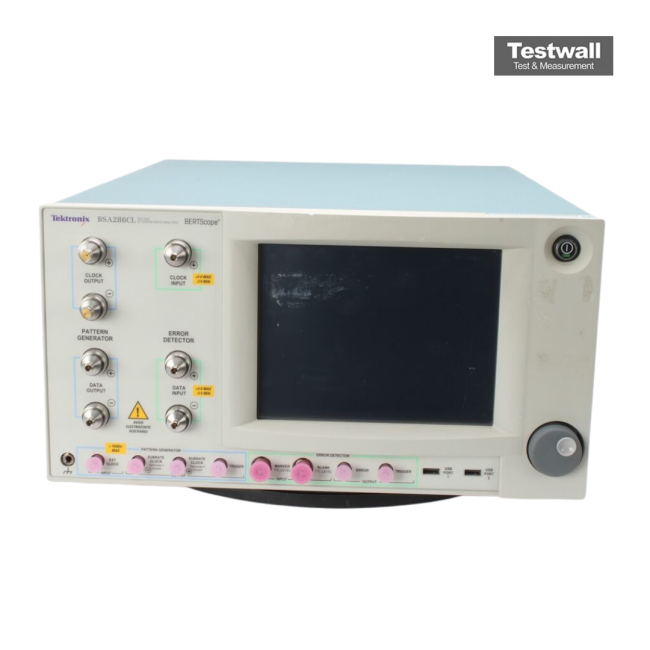

Tektronix BSA286CL
| Attribute | Value |
|---|---|
| Data Rate | Up to 28.6 Gb/s |
| Number of Channels | 2 channels |
| Bit Error Rate (BER) Floor | < 10^-13 |
| Pattern Length | Up to 2^31-1 PRBS |
| Output Voltage Swing | Up to 2.0 V peak-to-peak (single-ended) |
| Input Sensitivity | 50 mV peak-to-peak minimum |
| Clock Synthesis | Integrated clock synthesis and recovery |
| Interface | SFP+ and electrical interface support |
| Trigger Output | Programmable trigger output for synchronization |
| Connectivity | USB and LAN (LXI compliant) remote control interface |
| Model | BSA286CL |
|---|
The Tektronix BSA286CL BERTScope offers bit error rate testing up to 28.6 Gb/s with advanced pattern generation and error analysis. It integrates eye diagram analysis with BER correlation and supports sinusoidal, random, and bounded jitter types. Ideal for PCIe, Ethernet, Fibre Channel, and USB 3.1 testing, the BSA286CL ensures precise jitter decomposition and error burst analysis with integrated stress generation and Q-factor evaluation.
Designed for high-speed digital standards testing, it supports compliance templates, tolerance margin assessments, and advanced deterministic/random error diagnostics.
Testwall can supply the used Tektronix BSA286CL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix BSA286CL.
