Tektronix CFG280
| Attribute | Value |
|---|---|
| Frequency Range | 0.01 Hz to 11 MHz |
| Output Waveforms | Sine, Square, Triangle |
| Output Amplitude | 10 mVp-p to 10 Vp-p (into 50Ω) |
| Output Impedance | 50 Ω |
| Frequency Accuracy | ±5% of setting |
| DC Offset Range | ±5 V (into 50Ω) |
| Sine Wave Distortion | Less than 1% THD (up to 100 kHz) |
| Square Wave Rise Time | Less than 50 ns |
| Sweep Function | Linear and logarithmic sweep, internal or external control |
| Power Requirements | 90–250 VAC, 45–440 Hz, 20 W maximum |
| Model | CFG280 |
|---|

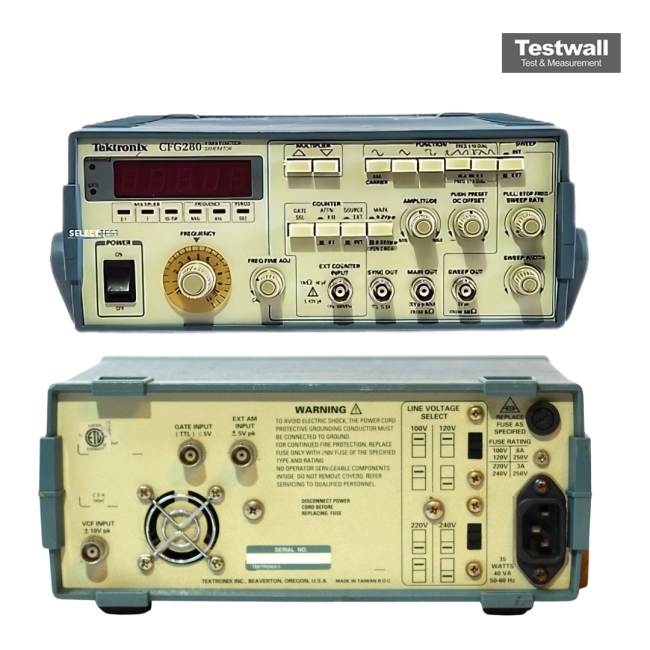

The Tektronix CFG280 is a benchtop function generator combining an 11 MHz signal generator and a 1 Hz to 100 MHz frequency counter in one unit. It features one channel, multiple waveform outputs including sine, square, and triangle, and an output impedance of 50 Ohms. The unit offers both internal and external linear sweep modes and has an AM input range of 0 to 100% for external sine waves.
This versatile device supports precise frequency setting using its internal counter and is ideal for laboratories requiring compact, multifunctional signal generation with crystal stability at 10 MHz.
Testwall can supply the used Tektronix CFG280, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CFG280.
