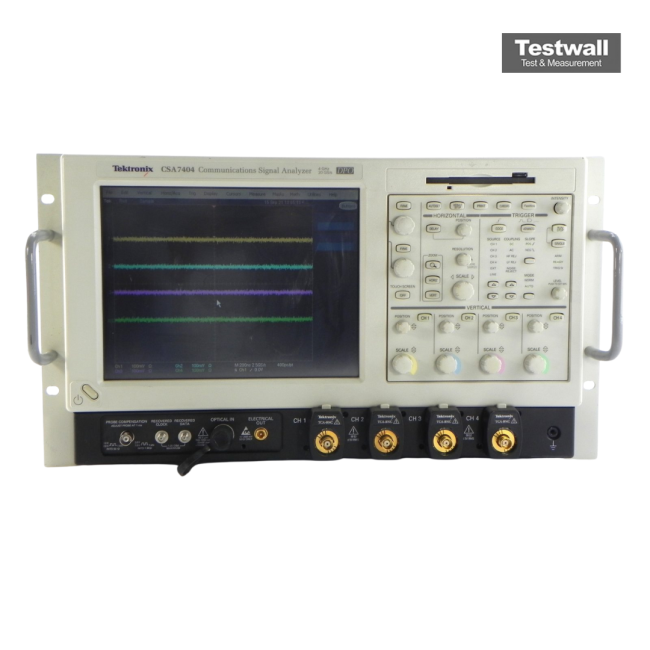

Tektronix CSA7404B
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 20 GS/s on 2 channels, 10 GS/s on 4 channels |
| Number of Channels | 4 |
| Record Length | Up to 64 MB per channel |
| Rise Time | 95 ps |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 10.4-inch color TFT LCD |
| Operating System | Windows XP Embedded |
| Connectivity | GPIB, USB, Ethernet (10/100Base-T) |
Tektronix CSA7404B Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- CSA7404B - 2M - Extended record length
- CSA7404B - 3M - Extended record length
- CSA7404B - SM - Serial communication mask testing
- CSA7404B - JT3 - TDSJIT3 jitter and timing analysis
- CSA7404B - PWR - TDSPWR3 power measurement and analysis
- CSA7404B - USB - TDSUSB2 USB 2.0 compliance testing
- CSA7404B - ET3 - TDSET3 Ethernet compliance testing
- CSA7404B - 1K - Instrument cart
- CSA7404B - 1R - Rack mount kit
The Tektronix CSA7404B is a real-time oscilloscope offering 4 GHz true analog bandwidth, a 20 GS/s max sample rate, and a >400,000 wfms/s capture rate via DPX® acquisition. It supports integrated optical testing, serial pattern triggering, clock recovery, and 64-bit serial triggering for in-depth signal analysis. Features include a 64 MB record length, MyScope® windows, built-in compliance mask tests, and OpenChoice® architecture for custom programmability and seamless integration with Windows-based software.
Ideal for analyzing complex electrical and optical signals, it delivers rapid, precise waveform visibility with compliance tools, optical reference receiver, and integrated hardware features ensuring seamless test configuration.
Testwall can supply the used Tektronix CSA7404B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CSA7404B.
