Tektronix CSA8000
| Attribute | Value |
|---|---|
| Bandwidth | Up to 20 GHz (with appropriate sampling modules) |
| Rise Time | 17.5 ps (typical, with 20 GHz bandwidth module) |
| Number of Channels | Up to 4 channels (with dual-channel sampling modules) |
| Timebase Range | 10 ps/div to 1 ms/div |
| Vertical Resolution | 14-bit (with enhanced resolution filtering) |
| Sample Rate | Up to 1 MS/s equivalent-time sampling |
| Display | 10.4-inch color LCD display |
| Trigger Types | Edge, pattern, pulse width, and clock recovery triggering |
| Connectivity/Interfaces | GPIB, RS-232, Ethernet, and floppy disk drive |
| Operating System | Windows NT-based operating system with touchscreen support |
Tektronix CSA8000 Options:
- CSA8000 - C3 - Three years of Calibration Service
- CSA8000 - D1 - Calibration data report
- CSA8000 - D3 - Three years of calibration data reports
- CSA8000 - R3 - Extended repair warranty to three years
- CSA8000 - 1K - Cart
- CSA8000 - 1R - Rackmount kit (includes: hardware, tooling and instructions for converting bench model to rackmount configuration)
- CSA8000 - A1 - Universal Euro 220 V, 50 Hz
- CSA8000 - A2 - UK 240 V, 50 Hz
- CSA8000 - A3 - Australian 240 V, 50 Hz
- CSA8000 - A5 - Switzerland 220 V, 50 Hz
- CSA8000 - A99 - No power cord
- CSA8000 - AC - China 240 V, 50 Hz
| Model | CSA8000 |
|---|

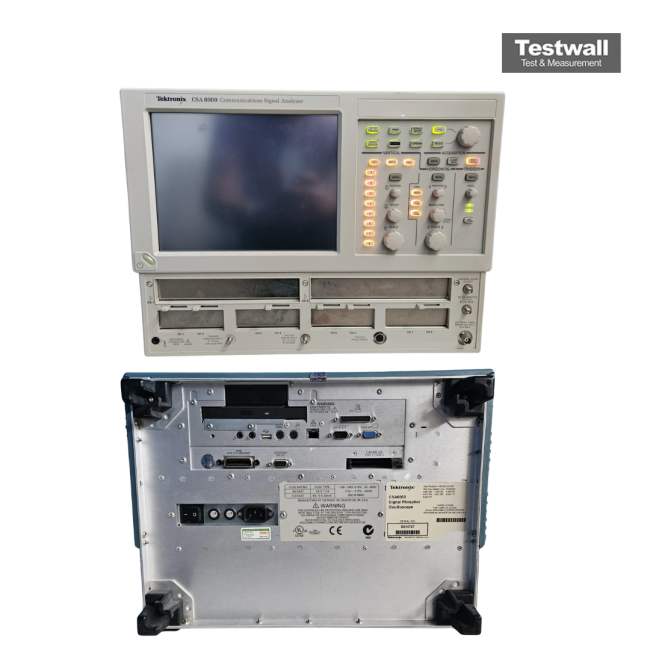

The Tektronix CSA8000 is a high-performance Communications Signal Analyzer engineered for precise testing in telecom and datacom environments. It offers wide bandwidth (DC to 50 GHz), a modular architecture, and a user-friendly Windows interface for intuitive operation and fast signal acquisition.
Designed for both R&D and production environments, it supports automatic ITU/ANSI mask testing, jitter, noise, extinction ratio, and Q-factor analysis, enabling comprehensive component validation.
Testwall can supply the used Tektronix CSA8000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CSA8000.
