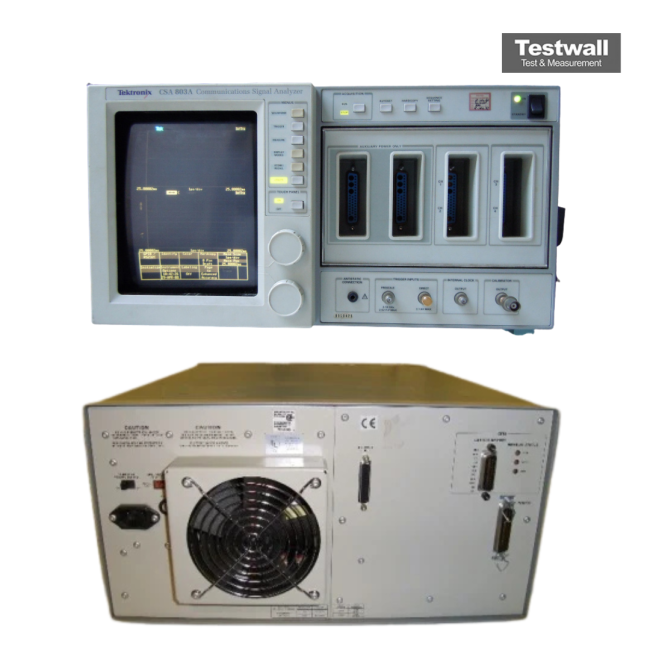

Tektronix CSA803A
| Attribute | Value |
|---|---|
| Bandwidth | 50 GHz |
| Rise Time | 7 ps |
| Timebase Range | 10 ps/div to 1 ms/div |
| Vertical Sensitivity | 10 mV/div to 200 mV/div |
| Number of Channels | Up to 4 channels (with plug-in modules) |
| Sampling Rate | Equivalent-time sampling up to 1 x 10^14 samples/sec |
| Display | Monochrome CRT display with high-resolution waveform presentation |
| Input Impedance | 50 Ohms |
| Trigger Sensitivity | Internal trigger with adjustable level and slope |
| Interface/Connectivity | GPIB (IEEE-488) interface for remote control and automation |
| Model | CSA803A |
|---|
The Tektronix CSA 803A Communications Signal Analyzer delivers a wide bandwidth from DC to 50 GHz, supporting advanced signal analysis through modular sampling heads like the SD 22 (12.5 GHz), SD 26 (20 GHz), SD 32 (7 ps rise time), SD 46 (optical to electrical), SD 51 (1–20 GHz triggering). Features include automatic statistical analysis, FFT spectral analysis, and built-in eye pattern and pulse template testing.
With 38 industry-standard masks, automatic extinction ratio measurement, and high-resolution repeatability, this device is ideal for precision diagnostics and impedance analysis using TDR and high-frequency triggering.
Testwall can supply the used Tektronix CSA 803A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CSA 803A
