Tektronix

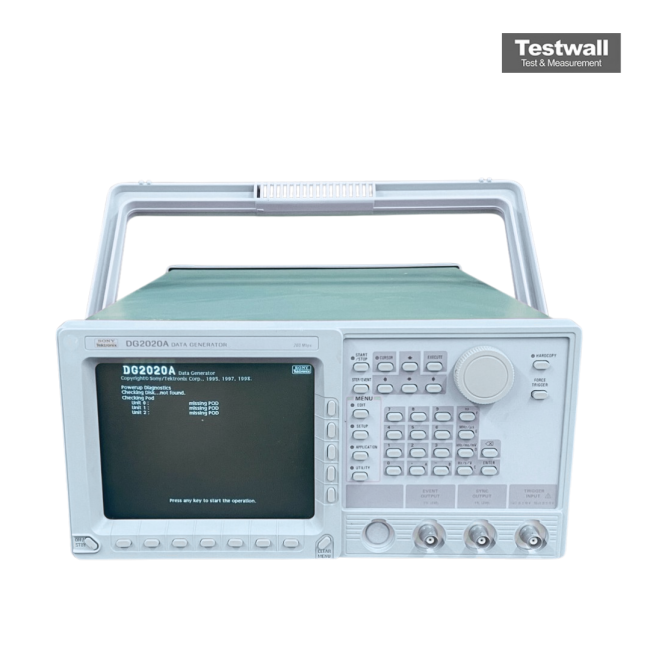

Tektronix DG2020A
200 Mb/s Data Generator
Up to 200 MHz Clock Rate
3 pods (12 data channels + 3 clock channels) Number of Output Channels
Up to 64K words per channel Memory Depth
Programmable high/low levels from -2.0 V to +5.0 V Output Voltage Levels
±50 mA maximum Output Current Drive
| Attribute | Value |
|---|---|
| Clock Rate | Up to 200 MHz |
| Number of Output Channels | 3 pods (12 data channels + 3 clock channels) |
| Memory Depth | Up to 64K words per channel |
| Output Voltage Levels | Programmable high/low levels from -2.0 V to +5.0 V |
| Output Current Drive | ±50 mA maximum |
| Timing Resolution | 5 ns (at 200 MHz clock rate) |
| Interface | GPIB (IEEE-488.2) |
| Trigger Input | External trigger input with programmable slope and threshold |
| Operating Modes | Single, Repetitive, Burst, and Stepped output modes |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz, 150 W maximum |
| Model | DG2020A |
|---|
The Tektronix DG2020A Data Generator offers 200 Mb/s data rate, 64K/channel pattern depth, and multiple output channels with precise control over delay, output levels, and tri-state logic. It features 2 ns transition time at 5V and flexible sequence control with jump, event, and nested loops.
Ideal for characterizing device timing, simulating missing functions, and integrating with logic analyzers or ATE systems via GPIB/RS-232-C interface.
Testwall can supply the used Tektronix DG2020A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DG2020A.
