Tektronix DG2030
| Manufacturer | Tektronix |
| Model | DG2030 |
| Product | Data Pattern Generator, 400 Mbps, 4/8 Ch. |
| Type | Used |

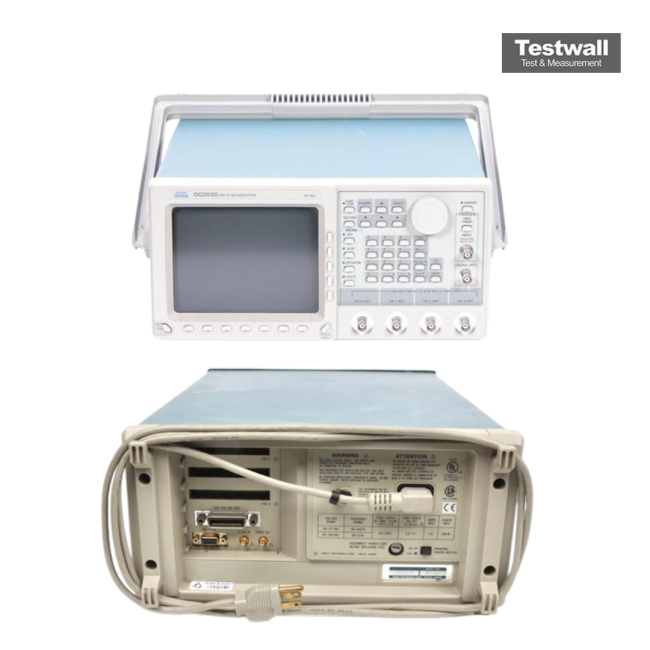

TEKTRONIX DG2030
The Tektronix DG2030 Data Pattern Generator provides digital designers with a high performance tool needed to evaluate advanced digital semiconductors and logic circuits. The Tektronix DG2030 is offers a balanced approach to providing the appropriate class of instrument for a wide variety of digital design applications.
The Tektronix DG2030 is the ideal solution for applications where you must characterize device or circuit timing and amplitude margins. It is perfect for simulating setup and hold violations or conditions of metastability. The Tektronix DG2030 graphical user interface allows you to quickly create complex data patterns with a few keystrokes on the front panel. Use the advanced sequence editing capability of this data generator to insert infrequent faults or glitches in your data patterns to verify device or circuit recovery.
Features of the Tektronix DG2030 include:
- Data Rate to 1.1 Gb/s Tests High-speed Logic Devices and Circuits
- Data Pattern Depth to 256 K/channel Speeds Characterization
- Multiple Output Channels Increases Flexibilit: 4 or 8 (optional)
- Control of Edge Timing (DG2040) Permits Jitter Simulation in Serial Data Streams
- Precise Control of Output Parameters Include:
- Variable Output Delay
- Variable Output Level
- Variable Rise and Fall Time Control (DG2030)
- Tri-state Output Control (DG2030)
- Fast Transition Times to 150 ps (DG2040) Aids Fast Logic Evaluation
- Complementary Output (DG2040) Assures Excellent Signal Fidelity
- Flexible Sequence Control with Jump, Event and Nested Loops
- Large Display for Easy-to-Use Data Editing
- Import Pattern Data with DG-link Software Utility
- Integrate into ATE Systems via GPIB/RS-232-C Interface
Specifications of the Tektronix DG2030 include:
- Data Rate: 400 Mb/s
- Pattern Depth: 256 K/Ch.
- Rise and Fall time (20% to 80%): 1.5ns at 2.5V p-p
- Number of channels: 4 or 8 (optional)
- Features: Variable tr and tf time
