Tektronix DMM4050
| Attribute | Value |
|---|---|
| DC Voltage Accuracy | 0.0035% + 0.0005% (6½ digit resolution) |
| Resolution | 6½ digits |
| DC Voltage Range | 100 mV to 1000 V |
| AC Voltage Range | 100 mV to 750 V (RMS) |
| Resistance Measurement Range | 100 Ω to 100 MΩ (2-wire and 4-wire) |
| DC Current Range | 10 mA to 10 A |
| AC Current Range | 10 mA to 10 A (RMS) |
| Frequency Measurement Range | 3 Hz to 300 kHz |
| Interface/Connectivity | USB, RS-232, and GPIB (optional) |
| Reading Rate | Up to 2,000 readings per second |
| Model | DMM4050 |
|---|

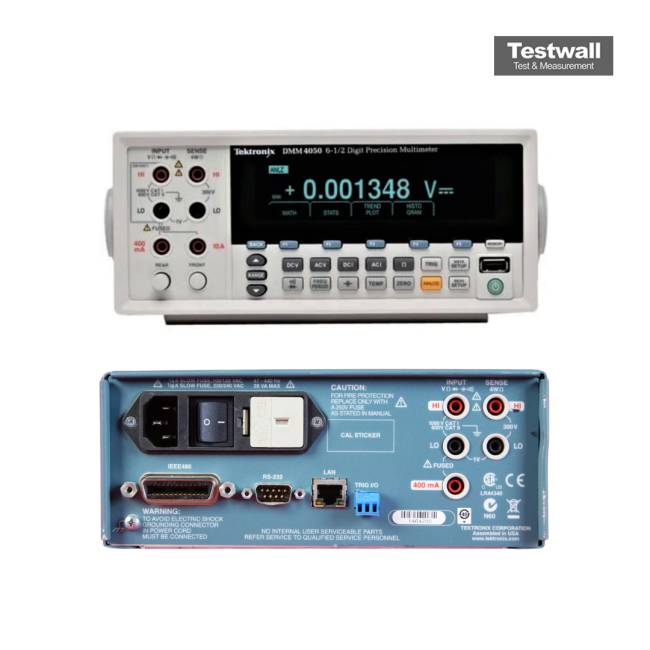

The Tektronix DMM4050 is a 6.5-digit precision bench multimeter delivering 0.0024% VDC accuracy, 100 pA current resolution, and 10 μΩ resistance resolution. It supports volts, ohms, amps, frequency, period, continuity, diode, temperature, and capacitance measurements. Replace multiple instruments with this all-in-one solution.
Its dual display allows simultaneous parameter readings. TrendPlot™ enables graphical data tracking over time. Includes front USB and rear LAN, RS-232, GPIB interfaces for flexible data handling and integration.
Testwall can supply the used Tektronix DMM4050, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DMM4050.
