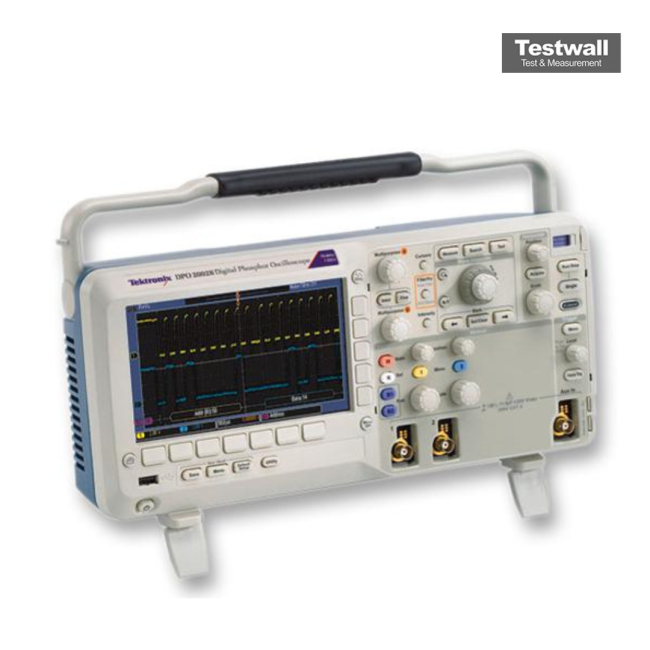

Tektronix DPO2022B
200 MHz, 2 Analog Channel Oscilloscope
200 MHz Bandwidth
2 Number of Channels
1 GS/s Sample Rate
1 M points Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Display Type | 7-inch WVGA color LCD |
| Waveform Capture Rate | Up to 5,000 waveforms per second |
| Connectivity | USB 2.0 Host and Device ports, CompactFlash card slot |
| Trigger Types | Edge, Pulse Width, Logic, Rise/Fall Time, Video, Serial (I2C, SPI, RS-232/422/485/UART optional) |
Tektronix DPO2022B Options:
- DPO2022B - DPO2BND - Application bundle module option that contains the DPO2AUTO, DPO2COMP, DPO2EMBD application modules
- DPO2022B - DPO2AUTO - Automotive Serial Triggering and Analysis Module; enables triggering on packet-level information on CAN bus and LIN bus
- DPO2022B - DPO2COMP - Computer Serial Triggering and Analysis Module; enables triggering on packet-level information on RS-232/422/485/UART buses
- DPO2022B - DPO2EMBD - Embedded Serial Triggering and Analysis Module; enables triggering on packet-level information on I2C and SPI buses
- DPO2022B - DPO2CONN - Adds Ethernet (10/100Base-T) and video out port
- DPO2022B - Opt. A0 - North America power plug (115 V, 60 Hz)
- DPO2022B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO2022B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO2022B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- DPO2022B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- DPO2022B - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- DPO2022B - Opt. A10 - China power plug (50 Hz)
- DPO2022B - Opt. A11 - India power plug (50 Hz)
- DPO2022B - Opt. A12 - Brazil power plug (60 Hz)
- DPO2022B - Opt. A99 - No power cord
- DPO2022B - Opt. L0 - English manual
- DPO2022B - Opt. L1 - French manual
- DPO2022B - Opt. L2 - Italian manual
- DPO2022B - Opt. L3 - German manual
- DPO2022B - Opt. L4 - Spanish manual
- DPO2022B - Opt. L5 - Japanese manual
- DPO2022B - Opt. L6 - Portuguese manual
- DPO2022B - Opt. L7 - Simplified Chinese manual
- DPO2022B - Opt. L8 - Traditional Chinese manual
- DPO2022B - Opt. L9 - Korean manual
- DPO2022B - Opt. L10 - Russian manual
- DPO2022B - Opt. L99 - No manual
- DPO2022B - Opt. D1 - Calibration Data Report
| Model | DPO2022B |
|---|
The Tektronix DPO2022B Oscilloscope features 2 analog channels, 200 MHz bandwidth, 1 GS/s sample rate, and 1 Mpoint record length. Includes Wave Inspector® for waveform navigation, FilterVu™ for noise filtering, and 29 automated measurements for detailed diagnostics.
Designed for embedded and mixed-signal debugging, it supports serial decoding options and features a 7" TFT color display in a compact form.
Testwall can supply the used Tektronix DPO2022B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO2022B.
