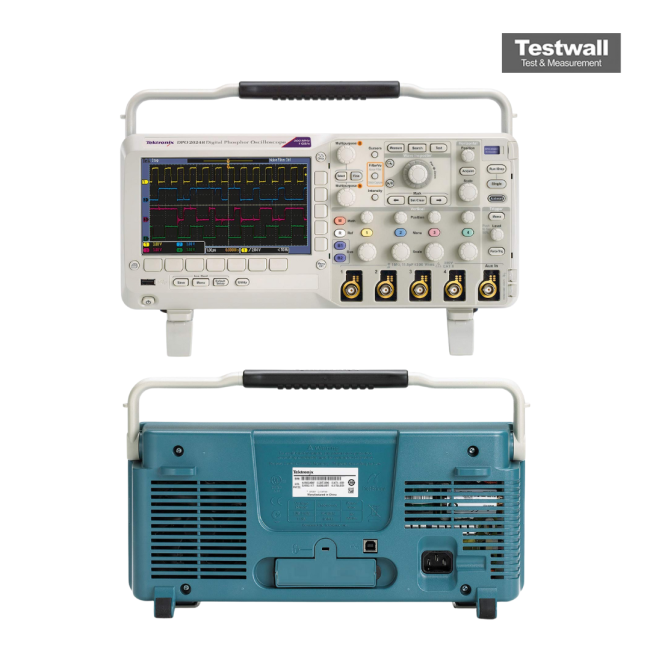

Tektronix DPO2024B
200 MHz, 4 Analog Channel Oscilloscope
4 Number of Channels
200 MHz Bandwidth
1 GS/s Sample Rate
1 M points Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8-bit |
| Rise Time | 2.1 ns |
| Input Impedance | 1 MΩ in parallel with 13 pF |
| Display | 7-inch WVGA (800 x 480) color display |
| Waveform Capture Rate | 5,000 waveforms per second |
| Connectivity | USB 2.0 Host and Device ports, CompactFlash card slot |
Tektronix DPO2024B Options:
- DPO2024B - DPO2BND - Application bundle module option that contains the DPO2AUTO, DPO2COMP, DPO2EMBD application modules
- DPO2024B - DPO2AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information
- DPO2024B - DPO2COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information
- DPO2024B - DPO2EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information
- DPO2024B - DPO2CONN - Adds Ethernet (10/100Base-T) and video out port
- DPO2024B - Opt. A0 - North America power plug (115 V, 60 Hz)
- DPO2024B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO2024B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO2024B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- DPO2024B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- DPO2024B - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- DPO2024B - Opt. A10 - China power plug (50 Hz)
- DPO2024B - Opt. A11 - India power plug (50 Hz)
- DPO2024B - Opt. A12 - Brazil power plug (60 Hz)
- DPO2024B - Opt. A99 - No power cord
- DPO2024B - Opt. L0 - English manual
- DPO2024B - Opt. L1 - French manual
- DPO2024B - Opt. L2 - Italian manual
- DPO2024B - Opt. L3 - German manual
- DPO2024B - Opt. L4 - Spanish manual
- DPO2024B - Opt. L5 - Japanese manual
- DPO2024B - Opt. L6 - Portuguese manual
- DPO2024B - Opt. L7 - Simplified Chinese manual
- DPO2024B - Opt. L8 - Traditional Chinese manual
- DPO2024B - Opt. L9 - Korean manual
- DPO2024B - Opt. L10 - Russian manual
- DPO2024B - Opt. L99 - No manual
- DPO2024B - Opt. D1 - Calibration Data Report
| Model | DPO2024B |
|---|
The Tektronix DPO2024B is a high-resolution mixed signal oscilloscope offering 200 MHz bandwidth and 1 GS/s sample rate, ideal for capturing analog and digital signals with clarity.
It is perfect for debugging complex systems with tools like FilterVu™, FFT, and Wave Inspector® on a compact platform.
Testwall can supply the used Tektronix DPO2024B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO2024B.
