Tektronix

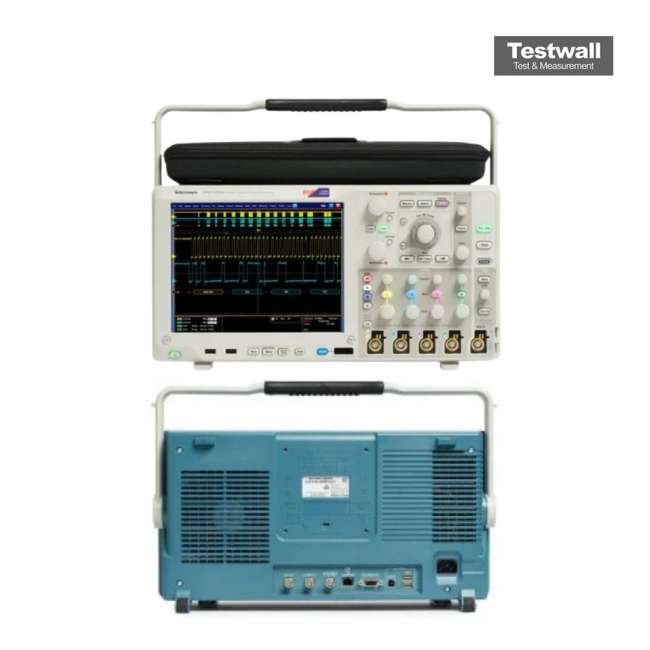

Tektronix DPO5034
Digital Phosphor Oscilloscope, 350 MHz 4 Ch., 5 GS/s
4 Number of Channels
350 MHz Bandwidth
5 GS/s Sample Rate
25 M points standard (125 M points optional) Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 350 MHz |
| Sample Rate | 5 GS/s |
| Record Length | 25 M points standard (125 M points optional) |
| Vertical Resolution | 8 bits |
| Rise Time | 1 ns |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4 inch (264 mm) color LCD display |
| Waveform Capture Rate | Up to 250,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Tektronix DPO5034 Options:
- DPO5034 - 2RL - 25 M/Ch record length
- DPO5034 - 5RL - 50 M/Ch record length
- DPO5034 - 10RL - 125 M/Ch record length
- DPO5034 - SSD - Solid state hard disk drive, ≥300 GB
- DPO5034 - DDRA - DDR Memory bus analysis (Requires Opt. DJA) (Available on 1 GHz and 2 GHz models only.)
- DPO5034 - DJA - Jitter and Eye Analysis Tools – Advanced (DPOJET)
- DPO5034 - ET3 - Ethernet compliance test (Requires TF-GBE-BTP or TF-GBE-ATP Ethernet Test Fixture)
- DPO5034 - HSIC - USB HSIC protocol decode and electrical validation (Available on 2 GHz models only.)
- DPO5034 - LT - Waveform limit testing
- DPO5034 - MOST - MOST Essentials – Electrical compliance and debug test solution for MOST50 and MOST150 (Requires Opt. DJA)
- DPO5034 - MTM - Mask testing
- DPO5034 - PWR - Power measurement and analysis
- DPO5034 - SR-AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- DPO5034 - SR-AUTO - Automotive serial triggering and analysis (CAN/LIN/FlexRay)
- DPO5034 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- DPO5034 - SR-DPHY - MIPI® D-PHY serial analysis
- DPO5034 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO5034 - SR-ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- DPO5034 - SR-PCIE - PCI Express serial analysis (Available on ≥1 GHz models only.)
- DPO5034 - SR-USB - USB 2.0 serial triggering and analysis (LS, FS, HS)
- DPO5034 - SR-810B - 8b/10b serial analysis
- DPO5034 - SVA - SignalVu® AM/FM/PM/Direct audio measurements (Requires Opt. SVE)
- DPO5034 - SVE - SignalVu® Essentials – Vector signal analysis software
- DPO5034 - SVM - SignalVu® General purpose modulation analysis (Requires Opt. SVE)
- DPO5034 - SVP - SignalVu® Pulse – Advanced signal analysis (Requires Opt. SVE)
- DPO5034 - SVT - SignalVu® Settling time measurements – frequency and phase (Requires Opt. SVE)
- DPO5034 - USB - USB 2.0 Compliance testing (Requires TDSUSBF (USB Test Fixture). 2 GHz bandwidth required for high-speed USB)
- DPO5034 - USBPWR - Automated compliance test solution for USB power adapters
- DPO5034 - VET - Visual Trigger and Search
- DPO5034 - VNM - CAN/LIN Protocol analysis software
- DPO5034 - PS1 - Power Solution Bundle: DPOPWR, P5205A, TCP0030A, TPA-BNC, 067-1686-xx (Deskew fixture), 119-7465-xx (external probe power supply)
- DPO5034 - PS2 - Power Solution Bundle: DPOPWR, THDP0200, TCP0030A, 067-1686-xx (Deskew fixture)
- DPO5034 - PS3 - Power Solution Bundle: DPOPWR, TMDP0200, TCP0020, 067-1686-xx (Deskew fixture)
- DPO5034 - A0 - North America power plug (115 V, 60 Hz)
- DPO5034 - A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO5034 - A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO5034 - A3 - Australia power plug (240 V, 50 Hz)
- DPO5034 - A5 - Switzerland power plug (220 V, 50 Hz)
- DPO5034 - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- DPO5034 - A10 - China power plug (50 Hz)
- DPO5034 - A11 - India power plug (50 Hz)
- DPO5034 - A12 - Brazil power plug (60 Hz)
- DPO5034 - A99 - No power cord
- DPO5034 - L0 - English manual
- DPO5034 - L1 - French manual
- DPO5034 - L3 - German manual
- DPO5034 - L5 - Japanese manual
- DPO5034 - L7 - Simplified Chinese manual
- DPO5034 - L8 - Traditional Chinese manual
- DPO5034 - L9 - Korean manual
- DPO5034 - L10 - Russian manual
- DPO5034 - L99 - No manual
- DPO5034 - C3 - Calibration Service 3 Years
- DPO5034 - C5 - Calibration Service 5 Years
- DPO5034 - D1 - Calibration Data Report
- DPO5034 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DPO5034 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DPO5034 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- DPO5034 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- DPO5034 - R3 - Repair Service 3 Years (including warranty)
- DPO5034 - R5 - Repair Service 5 Years (including warranty)
| Model | DPO5034 |
|---|
The Tektronix DPO5034 offers 4 analog channels, 350 MHz bandwidth, and up to 5 GS/s sampling rate, ideal for capturing high-speed signals in embedded and power-electronic designs. With a standard 12.5 M record length per channel, FastAcq® waveform rate of over 250,000 wfm/s, and FastFrame™ segmented capture capability, it enables thorough signal visibility.
Its Wave Inspector® interface, protocol decode options, 53 automated measurements, and 10.4″ XGA touchscreen make it ideal for deep waveform analysis and debugging.
Testwall can supply the used Tektronix DPO5034, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO5034.
