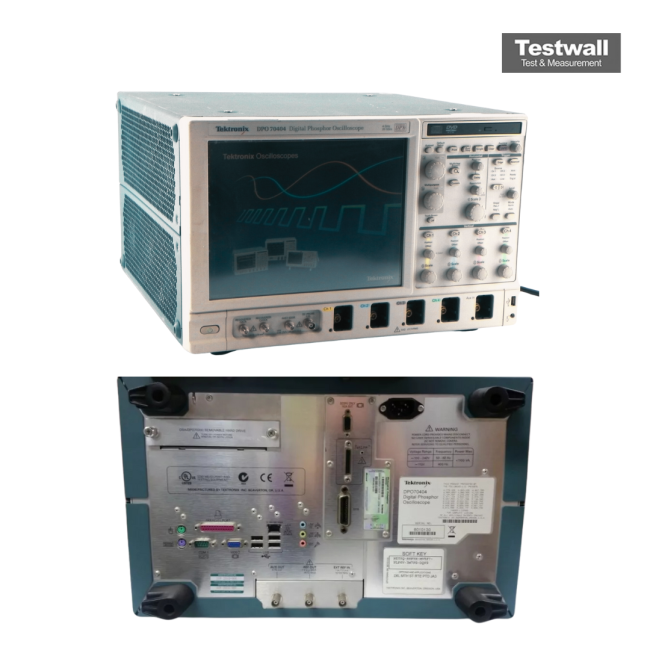

Tektronix DPO70404
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Sample Rate | 25 GS/s (on 1 or 2 channels), 12.5 GS/s (on all 4 channels) |
| Record Length | Up to 250 Mpoints (with optional extended record length) |
| Vertical Resolution | 8 bits (up to 11 bits with Hi-Res mode) |
| Rise Time | ≤ 116 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Waveform Capture Rate | Up to 300,000 waveforms/second |
| Display | 12.1-inch TFT color LCD display |
| Operating System | Windows XP Professional |
Tektronix DPO70404 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO70404 - 2XL - Extended record length
- DPO70404 - 5XL - Extended record length
- DPO70404 - 10XL - Extended record length
- DPO70404 - 20XL - Extended record length
- DPO70404 - 50XL - Extended record length
- DPO70404 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO70404 - DJAN - DPOJET jitter and noise analysis
- DPO70404 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO70404 - DDRA - DDR memory bus analysis
- DPO70404 - ST6G - 6.25 Gb/s serial pattern trigger
- DPO70404 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO70404 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO70404 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO70404 - SR-USB - USB 2.0 serial triggering and analysis
- DPO70404 - SR-PCIE - PCI Express serial analysis
- DPO70404 - SR-810B - 8b/10b serial analysis
- DPO70404 - MTH - Mask testing
- DPO70404 - LT - Limit testing
- DPO70404 - VET - Visual trigger
- DPO70404 - ASM - Advanced search and mark
The Tektronix DPO70404 is a high-performance digital phosphor oscilloscope with 4 GHz analog bandwidth and 20 GS/s sampling rate across four channels, tailored for demanding signal integrity and jitter analysis applications. It provides advanced jitter and timing analysis capabilities along with a massive 100M point record length per channel.
This unit is ideal for high-speed serial data testing, ensuring accurate waveform acquisition and detailed signal protocol analysis.
Testwall can supply the used Tektronix DPO70404, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO70404.
