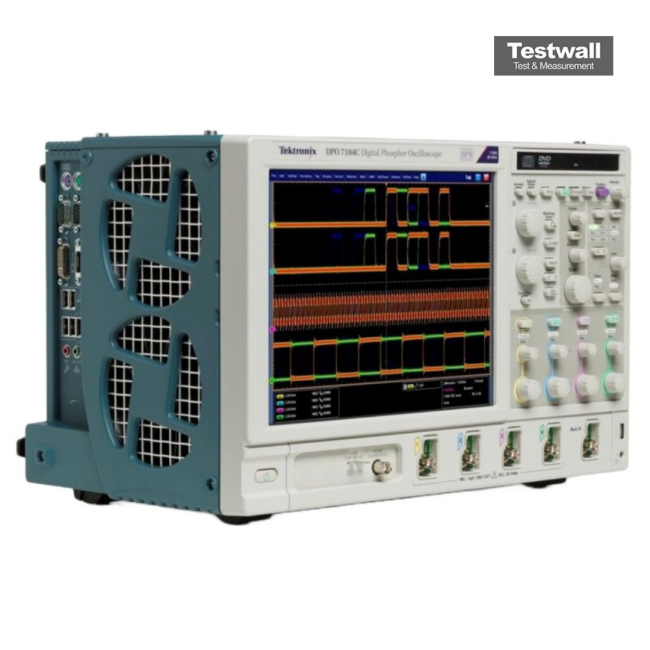

Tektronix DPO7104C
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (all channels simultaneous) |
| Record Length | Up to 250 M points |
| Vertical Resolution | 8 bits (up to 11 bits with Hi Res mode) |
| Rise Time | 350 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 12.1 inch TFT color LCD (XGA resolution) |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional), Windows-based OS |
Tektronix DPO7104C Options:
Options available for the Tektronix DPO7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO7104C - 2RL - Extended record length
- DPO7104C - 5RL - Extended record length
- DPO7104C - 10RL - Extended record length
- DPO7104C - 20RL - Extended record length
- DPO7104C - SR-DPHY - MIPI D-PHY (DSI-1, CSI-2) serial analysis
- DPO7104C - MTH - Mask testing
- DPO7104C - LT - Limit testing
- DPO7104C - VET - Visual trigger
- DPO7104C - ASM - Advanced search and mark
- DPO7104C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO7104C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO7104C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO7104C - SR-ENET - Ethernet serial analysis (10BASE-T, 100BASE-TX)
- DPO7104C - SR-USB - USB 2.0 serial triggering and analysis
- DPO7104C - DJA - DPOJET advanced jitter and eye diagram analysis
- DPO7104C - DDRA - DDR memory bus analysis (requires DJA)
- DPO7104C - PWR - Power measurement and analysis (DPOPWR)
- DPO7104C - ET3 - Ethernet compliance testing (10/100/1000BASE-T)
The Tektronix DPO7104C Digital Phosphor Oscilloscope offers 1 GHz bandwidth, up to 40 GS/s sampling rate, and 500M record length with advanced acquisition modes including FastAcq™, FastFrame™, and Pinpoint® Triggering. Features like Wave Inspector®, MyScope®, and TekVPI™ interface support intuitive navigation and deep analysis of complex signals.
It is ideal for capturing elusive anomalies and debugging mixed signal designs with automated measurements, user-defined filters, and MATLAB plug-ins for high-performance waveform analysis.
Testwall can supply the used Tektronix DPO7104C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO7104C.
