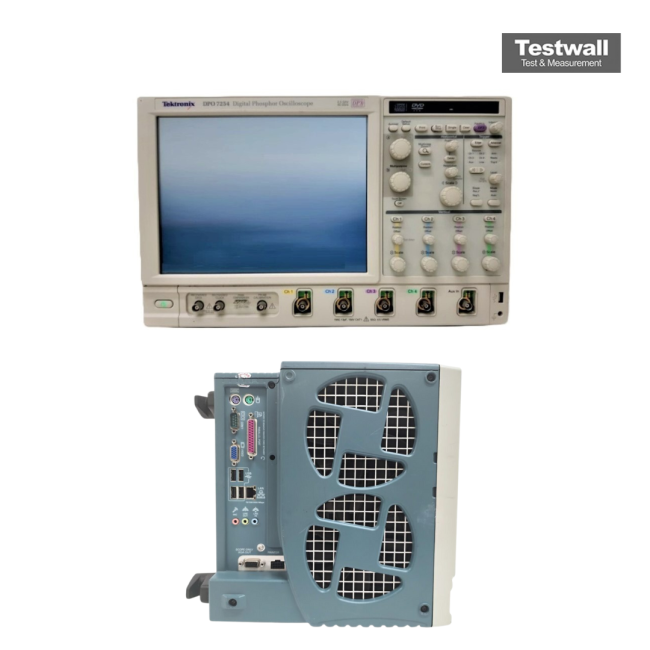

Tektronix DPO7254
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Sample Rate | Up to 20 GS/s on all channels simultaneously |
| Number of Channels | 4 analog channels |
| Record Length | Up to 250 Mpoints (500 Mpoints interleaved) |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Rise Time | ≤ 175 ps |
| Input Impedance | 1 MΩ or 50 Ω selectable |
| Display | 10.4-inch (264 mm) color LCD touchscreen |
| Waveform Capture Rate | Up to 250,000 waveforms per second |
| Operating System | Windows XP Professional embedded |
Tektronix DPO7254 Options:
Options available for the Tektronix DPO7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO7254 - 2RL - Extended record length
- DPO7254 - 5RL - Extended record length
- DPO7254 - 10RL - Extended record length
- DPO7254 - 20RL - Extended record length
- DPO7254 - SR-DPHY - MIPI D-PHY (DSI-1, CSI-2) serial analysis
- DPO7254 - MTH - Mask testing
- DPO7254 - LT - Limit testing
- DPO7254 - VET - Visual trigger
- DPO7254 - ASM - Advanced search and mark
- DPO7254 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO7254 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO7254 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO7254 - SR-ENET - Ethernet serial analysis (10BASE-T, 100BASE-TX)
- DPO7254 - SR-USB - USB 2.0 serial triggering and analysis
- DPO7254 - DJA - DPOJET advanced jitter and eye diagram analysis
- DPO7254 - DDRA - DDR memory bus analysis (requires DJA)
- DPO7254 - PWR - Power measurement and analysis (DPOPWR)
- DPO7254 - ET3 - Ethernet compliance testing (10/100/1000BASE-T)
The Tektronix DPO7254 is a 4-channel real-time digital phosphor oscilloscope with a bandwidth of up to 2.5 GHz, 50Ω/1MΩ input impedance, and 160 ps rise time. It features a 40 GS/s sample rate, 40M record length, and advanced capabilities like user-selectable bandwidth filters, I2C trigger enhancement, and event search. Its 12.1” XGA touchscreen makes it a top choice for high-performance applications.
Ideal for debugging, signal integrity, jitter analysis, and compliance testing in serial data and low-speed buses like I2C, SPI, RS-232, and CAN, the DPO7254 supports detailed transient and spectral analysis.
Testwall can supply the used Tektronix DPO7254, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO7254.
