Tektronix
Tektronix DPO7254C
4 Ch 2.5 GHz Digital Oscilloscope
2.5 GHz Bandwidth
40 GS/s Sample Rate
4 Number of Channels
250 M points (standard), up to 500 M points (optional) Record Length
8 bits (up to 11 bits with Hi Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Sample Rate | 40 GS/s |
| Number of Channels | 4 |
| Record Length | 250 M points (standard), up to 500 M points (optional) |
| Vertical Resolution | 8 bits (up to 11 bits with Hi Res mode) |
| Rise Time | ≤ 175 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 12.1-inch TFT color LCD, 1024 x 768 resolution |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional), Windows 7 embedded operating system |
Tektronix DPO7254C Options:
- DPO7254C - 2RL - Record Length upgrade: 125M max, 25M/ch
- DPO7254C - 5RL - Record Length upgrade: 250M max, 50M/ch
- DPO7254C - SSD - Solid State Hard Disk Drive
- DPO7254C - DDRA - DDR Memory Bus Analysis (requires Opt. DJA, available on ≥1 GHz models only)
- DPO7254C - DJA - Jitter and Eye Analysis Tools – Advanced (DPOJET)
- DPO7254C - D-PHY - MIPI® D-PHY Essentials – Transmitter Debug, Characterization, and Compliance Test Solution (requires Opt. DJA, available on ≥2.5 GHz models only)
- DPO7254C - ET3 - Ethernet Compliance Testing (requires TF-GBE-BTP or TF-GBE-ATP Ethernet Test Fixture)
- DPO7254C - LSA - Low-speed Automotive Serial Analysis, includes CAN Trigger, CAN/LIN Decode and Analysis
- DPO7254C - LT - Waveform Limit Testing
- DPO7254C - MTM - Mask Testing for ITU-T, ANSI T1.102, Ethernet, SONET/SDH, Fibre Channel, USB 2.0, IEEE 1394b, Rapid I/O, OIF, CPRI, and Serial Video; includes hardware clock recovery
- DPO7254C - PWR - Power Measurement and Analysis
- DPO7254C - SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- DPO7254C - SR-CUST - Custom Serial Analysis Kit for Developers
- DPO7254C - SR-DPHY - MIPI® D-PHY Serial Analysis (DSI-1 and CSI-2)
- DPO7254C - SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI)
- DPO7254C - SR-USB - USB 2.0 Serial Triggering and Analysis (LS, FS, HS)
- DPO7254C - ST1G - 8b/10b Serial Protocol Trigger and Decode up to 1.25 Gb/s (available on ≥2.5 GHz models only)
- DPO7254C - SVE - SignalVu Essentials Vector Signal Analysis
- DPO7254C - SVM - SignalVu General Purpose Modulation Analysis (requires Opt. SVE)
- DPO7254C - SVO - Flexible OFDM Analysis (requires Opt. SVE)
- DPO7254C - SVP - SignalVu Pulse Advanced Signal Analysis (requires Opt. SVE)
- DPO7254C - SVT - Settling Time Measurements – Frequency and Phase (requires Opt. SVE)
- DPO7254C - USB - USB 2.0 Compliance Testing (requires TDSUSBF USB Test Fixture; ≥2 GHz bandwidth required for high-speed USB)
- DPO7254C - VET - Visual Trigger and Search
- DPO7254C - PS1 - Power Solution Bundle: DPOPWR, P5205A, TCP0030, TPA-BNC, 067-1686-xx (Deskew Fixture)
- DPO7254C - TEKEXP - TekExpress Application Framework
- DPO7254C - TEKEXP D-PHYTX - D-PHY Automated Solution (requires Opt. DJA, available on ≥2.5 GHz models only)
- DPO7254C - A0 - Power Plug: North America
- DPO7254C - A1 - Power Plug: Universal European Union
- DPO7254C - A2 - Power Plug: UK
- DPO7254C - A3 - Power Plug: Australia
- DPO7254C - A5 - Power Plug: Switzerland
- DPO7254C - A6 - Power Plug: Japan
- DPO7254C - A10 - Power Plug: China
- DPO7254C - A11 - Power Plug: India
- DPO7254C - A12 - Power Plug: Brazil
- DPO7254C - A99 - No power cord
- DPO7254C - L0 - English user manual
- DPO7254C - L1 - French user manual
- DPO7254C - L3 - German user manual
- DPO7254C - L5 - Japanese user manual
- DPO7254C - L7 - Simplified Chinese user manual
- DPO7254C - L8 - Traditional Chinese user manual
- DPO7254C - L9 - Korean user manual
- DPO7254C - L10 - Russian user manual
- DPO7254C - L99 - No user manual
- DPO7254C - C3 - Calibration Service 3 Years
- DPO7254C - C5 - Calibration Service 5 Years
- DPO7254C - D1 - Calibration Data Report
- DPO7254C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DPO7254C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DPO7254C - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- DPO7254C - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
- DPO7254C - R3 - Repair Service 3 Years (including warranty)
- DPO7254C - R5 - Repair Service 5 Years (including warranty)
| Model | DPO7254C |
|---|

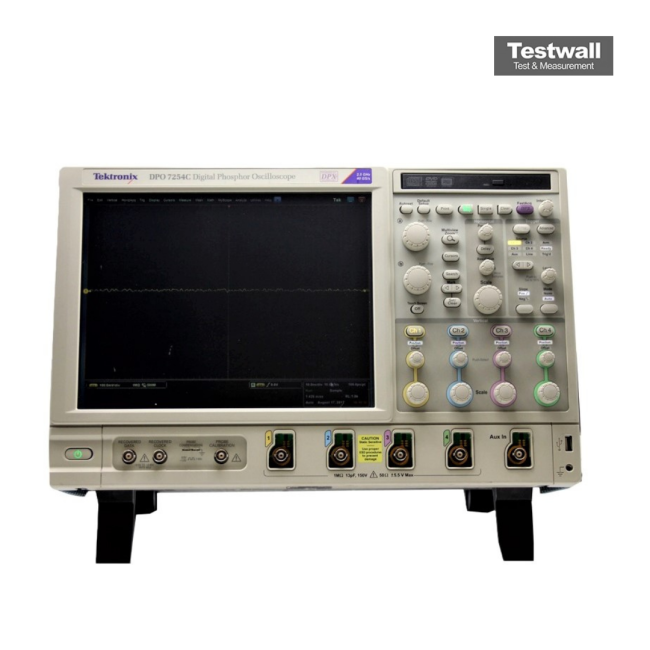

The Tektronix DPO7254C is a 2.5 GHz, 4-channel digital phosphor oscilloscope designed for high-speed signal integrity analysis and serial data decoding. It offers real-time sampling up to 40 GS/s, record lengths up to 250 Mpoints, and an advanced triggering system with over 1,400 combinations.
It includes FastAcq™ and FastFrame™ for high-speed acquisitions, plus built-in protocol support for I²C, SPI, CAN, Ethernet, and more via a 12.1″ XGA touchscreen interface.
Testwall can supply the used Tektronix DPO7254C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO7254C.
