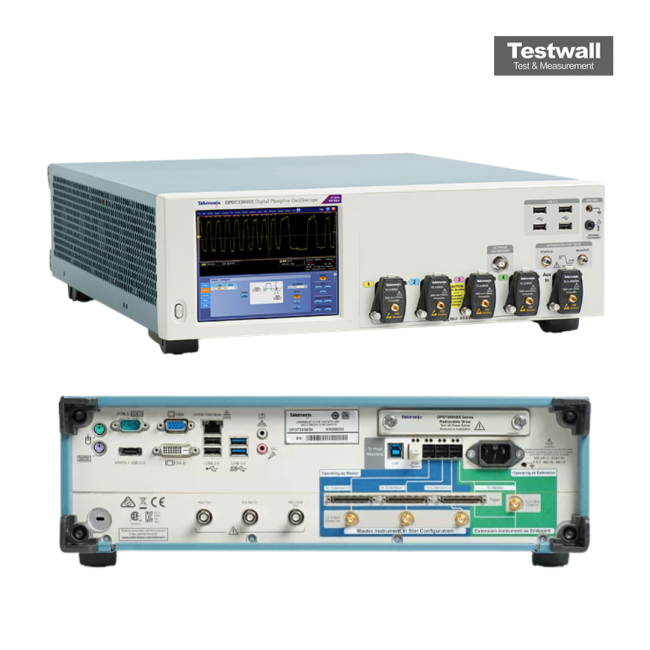

Tektronix DPO73304SX
| Attribute | Value |
|---|---|
| Bandwidth | 33 GHz |
| Sample Rate | 200 GS/s (single channel), 100 GS/s (all channels) |
| Number of Channels | 4 |
| Record Length | Up to 800 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | ≤ 10.6 ps |
| Input Impedance | 50 Ω |
| Display | 15.4-inch color LCD touchscreen |
| Connectivity | USB, LAN (LXI), DVI, Windows 10 OS |
| Waveform Capture Rate | Up to 280,000 waveforms per second |
Tektronix DPO73304SX Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO73304SX - 2XL - Extended record length
- DPO73304SX - 5XL - Extended record length
- DPO73304SX - 10XL - Extended record length
- DPO73304SX - 20XL - Extended record length
- DPO73304SX - 50XL - Extended record length
- DPO73304SX - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO73304SX - DJAN - DPOJET jitter and noise analysis
- DPO73304SX - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO73304SX - DDRA - DDR memory bus analysis
- DPO73304SX - ST6G - 6.25 Gb/s serial pattern trigger
- DPO73304SX - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO73304SX - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO73304SX - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO73304SX - SR-USB - USB 2.0 serial triggering and analysis
- DPO73304SX - SR-PCIE - PCI Express serial analysis
- DPO73304SX - SR-810B - 8b/10b serial analysis
- DPO73304SX - MTH - Mask testing
- DPO73304SX - LT - Limit testing
- DPO73304SX - VET - Visual trigger
- DPO73304SX - ASM - Advanced search and mark
The Tektronix DPO73304SX offers 33 GHz bandwidth and 100 GS/s sampling on 2 channels, supporting ultra-fast data analysis, low-noise operation via ATI architecture, and advanced triggering for high-precision testing.
Perfect for RF/microwave, serial data, and signal integrity tasks, it features envelope triggering, protocol decoding, and a scalable UltraSync system for synchronized multi-unit setups.
Testwall can supply the used Tektronix DPO73304SX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO73304SX.
