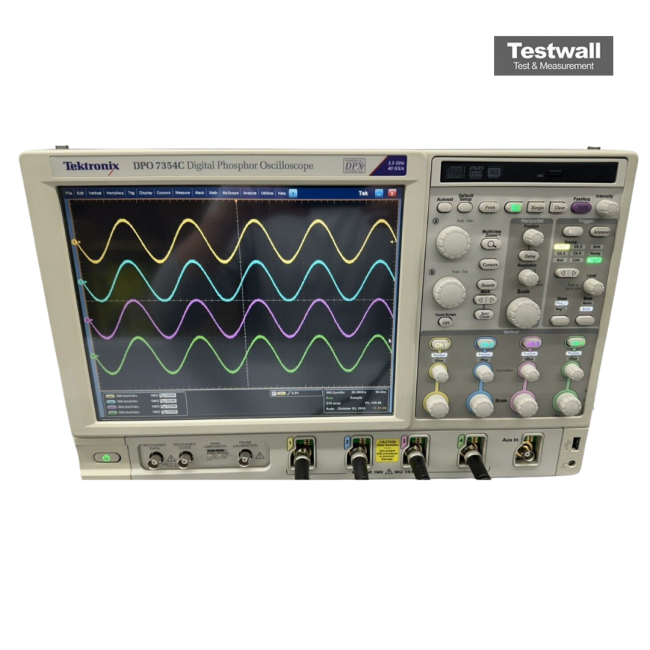

Tektronix DPO7354C
4 Ch 3.5 GHz Digital Oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 3.5 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GS/s |
| Record Length | 250 Mpoints (standard), up to 500 Mpoints (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 100 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 12.1-inch (307 mm) TFT color display, 1024 x 768 resolution |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Connectivity & Interface | USB, LAN (LXI), DVI-I video output, Windows 7 operating system |
Tektronix DPO7354C Options:
Options available for the Tektronix DPO7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO7354C - 2RL - Extended record length
- DPO7354C - 5RL - Extended record length
- DPO7354C - 10RL - Extended record length
- DPO7354C - 20RL - Extended record length
- DPO7354C - SR-DPHY - MIPI D-PHY (DSI-1, CSI-2) serial analysis
- DPO7354C - MTH - Mask testing
- DPO7354C - LT - Limit testing
- DPO7354C - VET - Visual trigger
- DPO7354C - ASM - Advanced search and mark
- DPO7354C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO7354C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO7354C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO7354C - SR-ENET - Ethernet serial analysis (10BASE-T, 100BASE-TX)
- DPO7354C - SR-USB - USB 2.0 serial triggering and analysis
- DPO7354C - DJA - DPOJET advanced jitter and eye diagram analysis
- DPO7354C - DDRA - DDR memory bus analysis (requires DJA)
- DPO7354C - PWR - Power measurement and analysis (DPOPWR)
- DPO7354C - ET3 - Ethernet compliance testing (10/100/1000BASE-T)
The Tektronix DPO7354C is a high-performance 4-channel digital oscilloscope with 3.5 GHz bandwidth and real-time sampling up to 40 GS/s, ideal for advanced signal analysis. Its deep memory up to 500 Mpts and MultiView Zoom™ ensure detailed insight into fast-changing waveforms.
Used in debugging, production testing, and design, the DPO7354C excels in capturing fine timing details, supported by FastAcq®, FastFrame™, and customizable bandwidth filters.
Testwall can supply the used Tektronix DPO7354C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO7354C.
