Tektronix DPP125C
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | Tektronix 1 Series, 2 Series, TBS1000, TBS2000, TDS200, TDS1000, TDS2000 |
| Probe Type | Passive Voltage Probe |
| Bandwidth | 125 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13.5 pF |
| Maximum Input Voltage | 300 V CAT II |
| Cable Length | 1.2 m (approximately 4 ft) |
| Connector Type | BNC |
| Compensation Range | 15 pF to 47 pF |
Tektronix DPP125C Options:
- DPP125C - Opt. 4T - Optional 4-Tap Digital Pre-emphasis Processor
- DPP125C - Opt. ECM - Optional integrated PCIe compliant clock multiplication for 2.5/5/8 GHz, eye opener, and clock doubler for 12 Gb/s SAS
| Model | DPP125C |
|---|

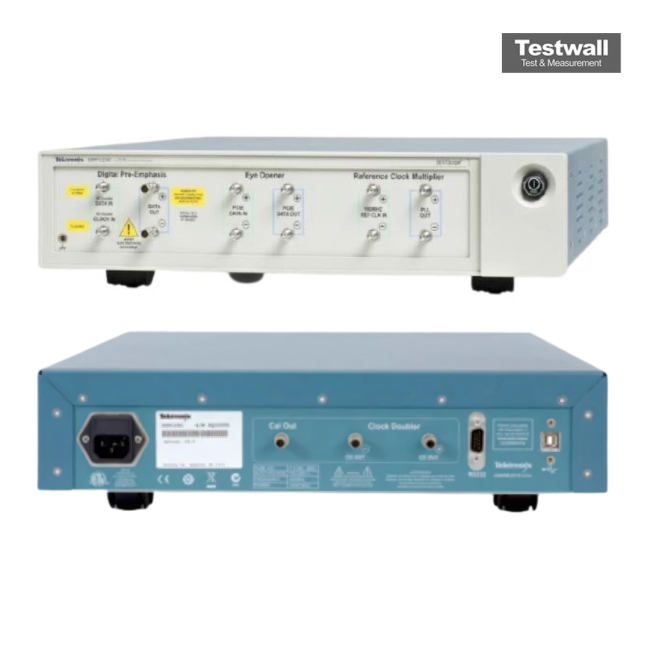

The Tektronix DPP125C is a nonlinear signal conditioner supporting 1 to 12.5 Gb/s signal rates, ideal for equalization of high-speed serial standards. It features 3- or 4-tap adjustment with pre- or post-cursor emphasis for precise ISI and loss compensation, supporting protocols like 802.3ap, USB 3.0/3.1, PCIe Gen3, and SAS.
Perfect for hardware compliance testing and integration with BERTScope systems, offering options like integrated eye opener, clock doubler, and reference clock multiplication.
Testwall can supply the used Tektronix DPP125C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPP125C.
