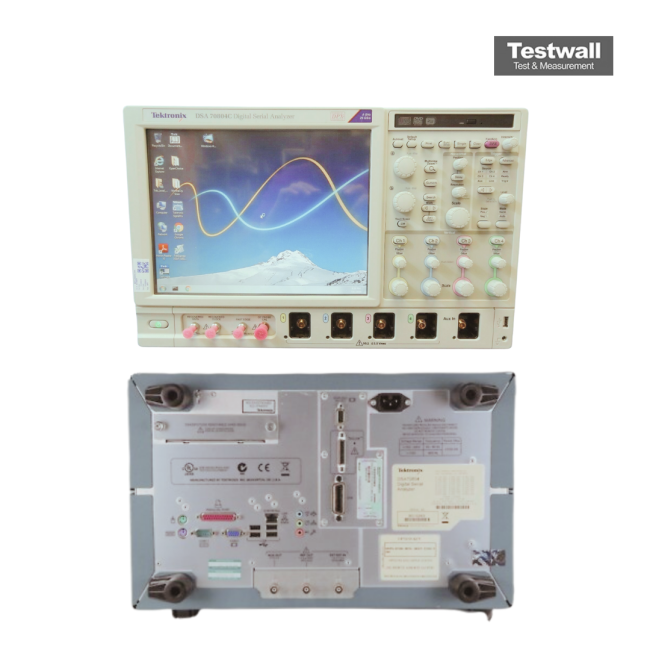

Tektronix DSA70804C
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 25 GS/s (single channel), 12.5 GS/s (all channels) |
| Number of Channels | 4 |
| Record Length | Up to 250 Mpoints (standard), 500 Mpoints (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 52.0 ps (typical) |
| Input Impedance | 50 Ω (standard), 1 MΩ (optional) |
| Display | 12.1-inch TFT color LCD, 1024 x 768 resolution |
| Operating System | Windows 7 (64-bit) |
| Connectivity | USB, LAN (LXI compliant), GPIB (optional), DVI output |
Tektronix DSA70804C Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA70804C - 2XL - Extended record length
- DSA70804C - 5XL - Extended record length
- DSA70804C - 10XL - Extended record length
- DSA70804C - 20XL - Extended record length
- DSA70804C - 50XL - Extended record length
- DSA70804C - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA70804C - DJAN - DPOJET jitter and noise analysis
- DSA70804C - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA70804C - DDRA - DDR memory bus analysis
- DSA70804C - ST6G - 6.25 Gb/s serial pattern trigger
- DSA70804C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA70804C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA70804C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA70804C - SR-USB - USB 2.0 serial triggering and analysis
- DSA70804C - SR-PCIE - PCI Express serial analysis
- DSA70804C - SR-810B - 8b/10b serial analysis
- DSA70804C - MTH - Mask testing
- DSA70804C - LT - Limit testing
- DSA70804C - VET - Visual trigger
- DSA70804C - ASM - Advanced search and mark
The Tektronix DSA70804C is a high-performance digital serial analyzer designed to tackle complex high-speed serial data challenges. It builds upon the DPO70000 Series technology, offering unmatched signal acquisition fidelity, built-in clock recovery, NRZ serial pattern triggering, and compliance testing up to 6.25 Gbps. With advanced jitter analysis and timing accuracy, it supports detailed physical layer diagnostics and customizable compliance analysis.
This analyzer is ideal for engineers needing precise, real-time validation of high-speed serial designs, including jitter characterization, timing margin analysis, and communication mask testing, all within a single instrument.
Testwall can supply the used Tektronix DSA70804C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA70804C.
