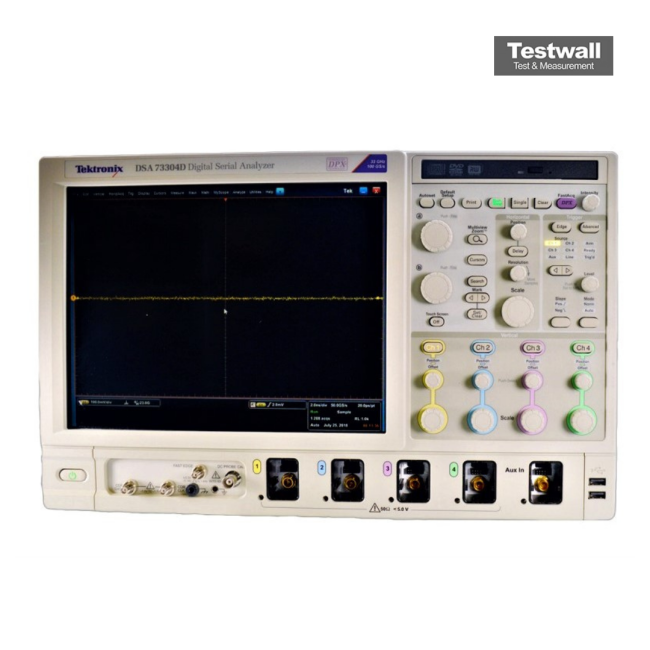

Tektronix DSA73304D
| Attribute | Value |
|---|---|
| Bandwidth | 33 GHz |
| Sample Rate | 100 GS/s |
| Number of Channels | 4 |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 13.3 ps |
| Input Impedance | 50 Ω |
| Display | 12.1-inch TFT color LCD |
| Operating System | Windows XP Professional |
| Connectivity | USB, LAN (LXI), GPIB |
Tektronix DSA73304D Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA73304D - 2XL - Extended record length
- DSA73304D - 5XL - Extended record length
- DSA73304D - 10XL - Extended record length
- DSA73304D - 20XL - Extended record length
- DSA73304D - 50XL - Extended record length
- DSA73304D - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA73304D - DJAN - DPOJET jitter and noise analysis
- DSA73304D - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA73304D - DDRA - DDR memory bus analysis
- DSA73304D - ST6G - 6.25 Gb/s serial pattern trigger
- DSA73304D - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA73304D - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA73304D - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA73304D - SR-USB - USB 2.0 serial triggering and analysis
- DSA73304D - SR-PCIE - PCI Express serial analysis
- DSA73304D - SR-810B - 8b/10b serial analysis
- DSA73304D - MTH - Mask testing
- DSA73304D - LT - Limit testing
- DSA73304D - VET - Visual trigger
- DSA73304D - ASM - Advanced search and mark
The Tektronix DSA73304D oscilloscope delivers ultra-performance with a 33 GHz bandwidth and 9 ps rise time, empowered by a 100 GS/s real-time sampling rate on two channels. Built using IBM's SiGe 8HP BiCMOS technology, its advanced preamplifier and track-and-hold circuitry are integrated into a compact multi-chip module for maximum signal fidelity.
This model is ideal for high-speed serial, wideband RF, and optical communication testing, ensuring precision in the most demanding applications.
Testwall can supply the used Tektronix DSA73304D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA73304D.
