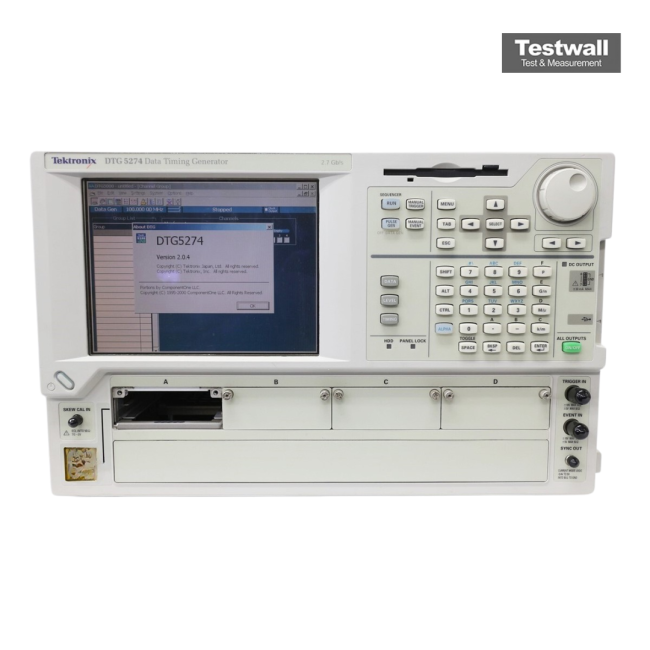

Tektronix DTG5274
| Attribute | Value |
|---|---|
| Number of Channels | 32 channels (expandable up to 136 channels) |
| Maximum Data Rate | 2.7 Gb/s per channel |
| Timing Resolution | 37 ps |
| Memory Depth | Up to 64 Mb per channel |
| Output Voltage Range | -2.0 V to +3.7 V (High Level), -2.0 V to +3.7 V (Low Level) |
| Output Impedance | 50 Ω |
| Sequence Depth | Up to 32,000 subsequences |
| Operating System | Windows XP Embedded |
| Interface/Connectivity | GPIB, LAN (10/100Base-T), USB |
| Power Requirements | 100–240 VAC, 50/60 Hz, 800 W maximum |
| Model | DTG5274 |
|---|
The Tektronix DTG5274 is a high-performance Modular Data Timing Generator designed for digital system validation and timing analysis. It delivers NRZ signals up to 2.7 Gb/s (expandable to 3.35 Gb/s) and supports up to 96 synchronized channels through a modular 4-slot architecture. It features precise delay resolution of 0.2 ps, configurable RZ/R1/pulse modes, and integrated jitter generation for exact digital stimulus control.
Ideal for stress testing, interface validation, and timing pattern generation, the DTG5274 offers traceable scan-chain timing and glitch insertion capabilities.
Testwall can supply the used Tektronix DTG5274, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DTG5274.
