Tektronix DTG5334
| Attribute | Value |
|---|---|
| Number of Channels | 34 Channels |
| Maximum Data Rate | 3.35 Gb/s |
| Timing Resolution | 50 ps |
| Memory Depth | up to 256 Mbit per channel (with optional memory upgrade) |
| Output Voltage Range | -2 V to +3.6 V |
| Clock Frequency Range | 50 MHz to 3.35 GHz |
| Output Impedance | 50 Ω |
| Sequence Depth | Up to 32,768 steps |
| Interface | GPIB, USB, LAN (LXI Compliant) |
| Operating System | Windows XP Embedded |
| Model | DTG5334 |
|---|

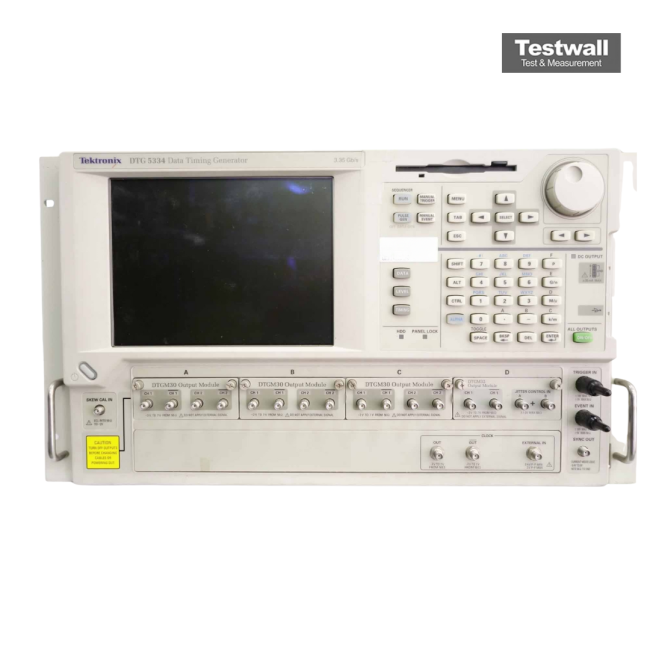

The Tektronix DTG5334 is a high-performance data and pulse generator offering up to 3.35 Gb/s data rates and support for 1 to 96 data channels. It features a class-leading delay resolution of 0.2 ps and up to 64 Mb pattern depth per channel. Its modular design supports advanced configurations with plug-in modules, external jitter injection, and precise level control with 5 mV resolution.
Optimized for complex testing needs, it simplifies low-jitter signal generation, stressed eye creation, and integration with scopes and logic analyzers. Its built-in PC supports network connectivity and peripheral interfaces.
Testwall can supply the used Tektronix DTG5334, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DTG5334.
