Tektronix DTGM32
Differential Output Module, 1 Ch., 1.25V
Data Timing Generator Memory Module Module Type
32 Mb per channel Memory Depth
Tektronix DTG5000 Series Data Timing Generators Compatible Instruments
Up to 32 channels (depending on configuration) Number of Channels
Up to 3.35 Gb/s Maximum Data Rate
| Attribute | Value |
|---|---|
| Module Type | Data Timing Generator Memory Module |
| Memory Depth | 32 Mb per channel |
| Compatible Instruments | Tektronix DTG5000 Series Data Timing Generators |
| Number of Channels | Up to 32 channels (depending on configuration) |
| Maximum Data Rate | Up to 3.35 Gb/s |
| Output Voltage Range | -2.0 V to +3.7 V |
| Timing Resolution | Up to 100 ps timing resolution |
| Module Form Factor | Plug-in module for DTG5000 mainframe |
| Pattern Generation | Supports PRBS, user-defined, and sequential patterns |
| Operating Temperature | 0°C to +50°C |
| Model | DTGM32 |
|---|

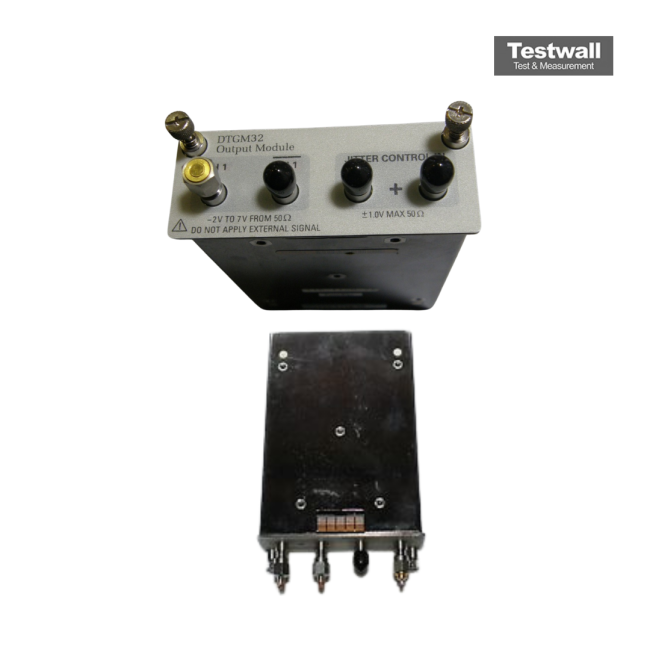

The Tektronix DTGM32 is a 1-channel low frequency complementary output module for DTG5000 series Data Timing Generators, delivering up to 350Mb/s data rates and jitter frequency up to 50MHz with 2ns jitter amplitude.
Ideal for HDMI compliance testing, it features 2 external jitter modulation inputs, supports up to 2.5 Vpk-pk output, and offers an affordable solution for advanced jitter generation.
Testwall can supply the used Tektronix DTGM32, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DTGM32.
