Tektronix FCA3000
| Attribute | Value |
|---|---|
| Frequency Range | DC to 300 MHz (Channel 1 and 2), DC to 7 GHz (Channel 3, optional) |
| Resolution | Up to 12 digits frequency resolution |
| Time Interval Resolution | 50 ps single-shot time interval resolution |
| Input Channels | 2 standard channels (Channel 3 optional for microwave frequencies) |
| Input Impedance | 1 MΩ or 50 Ω selectable (Channels 1 and 2) |
| Sensitivity | 20 mVrms (Channel 1 and 2), 10 mVrms (Channel 3) |
| Measurement Functions | Frequency, period, time interval, pulse width, duty cycle, rise/fall time, phase, totalize |
| Timebase Stability | Standard TCXO ±1 ppm/year aging; optional OCXO for improved stability |
| Display | Large LCD display with numeric and statistical readout of measurement results |
| Interface/Connectivity | GPIB and RS-232 interfaces standard for remote control and data transfer |
Tektronix FCA3000 Options:
- FCA3000 - MS - Medium-stability Oven Time Base
- FCA3000 - HS - High-stability Oven Time Base
- FCA3000 - RP - Rear-panel Connectors
- FCA3000 - A0 - Power Plug, North America
- FCA3000 - A1 - Power Plug, Universal Euro
- FCA3000 - A2 - Power Plug, United Kingdom
- FCA3000 - A3 - Power Plug, Australia
- FCA3000 - A5 - Power Plug, Switzerland
- FCA3000 - A6 - Power Plug, Japan
- FCA3000 - A10 - Power Plug, China
- FCA3000 - A11 - Power Plug, India
- FCA3000 - A12 - Power Plug, Brazil
- FCA3000 - E1 - Power Plug, UK and Euro (FCA3000 and FCA3100 only)
- FCA3000 - C3 - Calibration Service 3 Years
- FCA3000 - C5 - Calibration Service 5 Years
- FCA3000 - D1 - Calibration Data Report
- FCA3000 - R5 - Repair Service 5 Years
- FCA3000 - SILV200 - Standard Warranty Extended to 5 Years (FCA3000, FCA3003, FCA3100, and FCA3103)
| Model | FCA3000 |
|---|

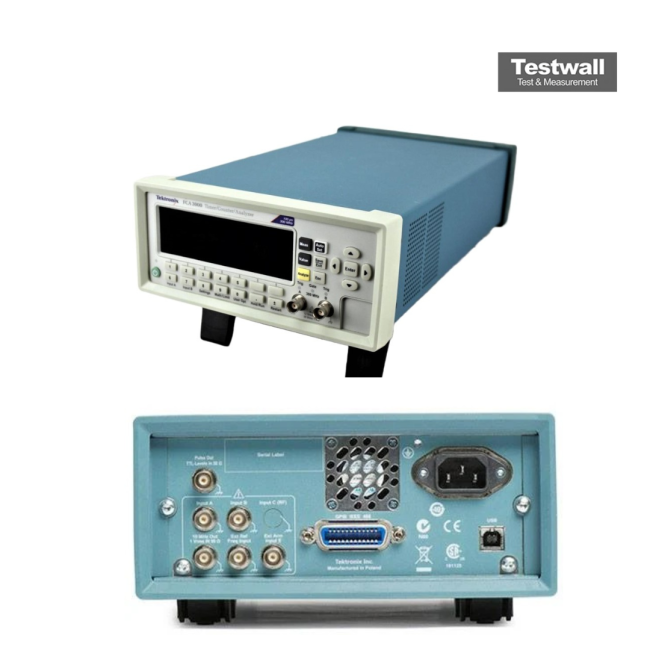

Tektronix FCA3000 Frequency Counter / Analyzer
The Tektronix FCA3000 Frequency Counter/Analyzer offers high-precision measurements in a compact and easy-to-use package. With industry-leading frequency and time resolution, the FCA3000 comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, Tektronix FCA3000 Frequency Counter/Analyzer is capable of quickly and accurately analyze your signal.
The Tektronix FCA3000 Frequency Counter/Analyzer offers a zero dead-time measurement technique through the USB/GPIB interfaces with a raw time-stamping function to ensure correct measurements of Allan Deviation. For correct calculation of statistical parameters, the FCA3000 comes with limit-qualifying capability. By setting limits, you can isolate one cluster in your calculation. The FCA Microwave Counter Series offers industry-best throughput, saving up to 90% on testing time. The instrument has a user-friendly interface with a multi-parameter display which shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. Its high-precision measurements and advanced analysis functions make Tektronix FCA3000 Frequency Counter/Analyzer an ideal tool for engineers, technicians, and scientists who require accurate frequency and time measurements.
Specifications for the Tektronix FCA3000 Frequency Counter / Analyzer Include:
| Frequency Range | 0.001 Hz to 20 GHz |
| Time Resolution | 100 ps |
| Frequency resolution | 12 Digit/s |
| Voltage Resolution | 3 mV |
