Tektronix GB1400
| Attribute | Value |
|---|---|
| Data Rate | Up to 1.4 Gb/s |
| Interface Type | GBIC (Gigabit Interface Converter) |
| Wavelength | 1300 nm |
| Fiber Type | Multimode Fiber |
| Connector Type | SC Duplex |
| Transmission Distance | Up to 550 m |
| Operating Temperature | 0°C to +70°C |
| Supply Voltage | 3.3V |
| Form Factor | GBIC Module |
| Compliance Standards | IEEE 802.3z, Fibre Channel |
| Model | GB1400 |
|---|

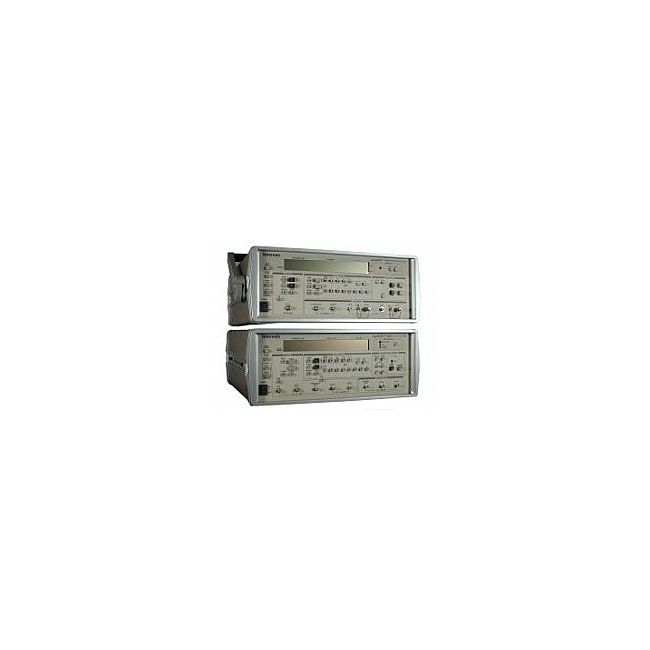

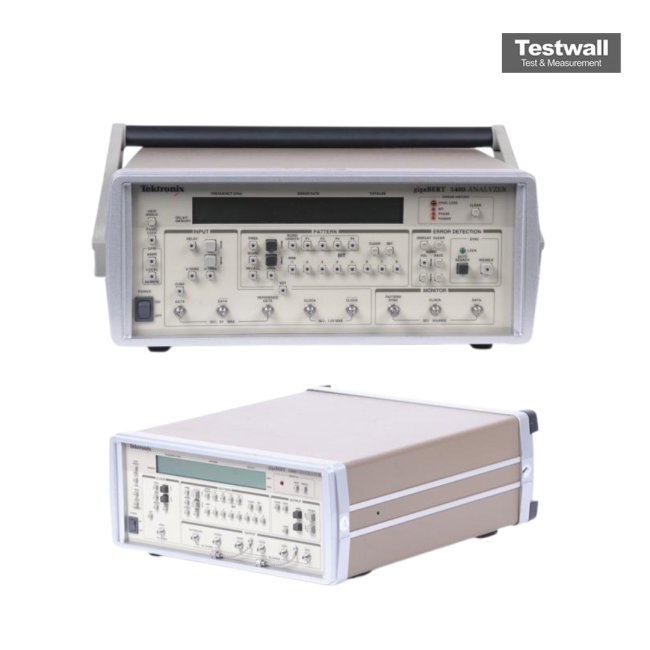

The Tektronix GB1400 Bit Error Rate Tester operates up to 1400 Mb/s, generating low‑jitter, symmetrical waveforms via true/inverted single‑ended or differential ECL outputs. It supports PRBS up to 2²³‑1 or custom patterns stored in up to 1 Mbit battery‑backed RAM, with PC download via GPIB/RS‑232. Featuring an internal PLL clock, 4 ns clock/data adjustable delay with 5 ps resolution, automatic eye‑width measurement, optional burst mode, and phase‑synchronous edge tracking, it covers a broad range of high‑precision timing and signal‑integrity needs.
Specifically designed for Gigabit LAN, satellite communications, high‑speed circuit/system design, full‑rate HD video simulation, manufacturing test (TE), and GaAs/ECL/optical component analysis, the GB1400 ensures flexible inputs and robust timing control for demanding test environments.
Testwall can supply the used Tektronix GB1400, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix GB1400.
