Tektronix
Tektronix MDO3014
4 Ch,100MHz Oscilloscope with 100MHz spectrum analyzer
100 MHz Bandwidth
4 Number of Analog Channels
2.5 GS/s Sample Rate
10 M points Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 8 bits |
| RF Frequency Range | 9 kHz to 3 GHz |
| Display | 9-inch WVGA (800 x 480) TFT color display |
| Digital Channels | 16 (with optional logic probe) |
| Waveform Capture Rate | 280,000 waveforms per second |
| Connectivity | USB Host, USB Device, LAN (LXI), Wi-Fi (optional) |
Tektronix MDO3014 Options:
- MDO3014 - MDO3AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO3014 - MDO3MSO - 16 digital channels; includes P6316 digital probe and accessories
- MDO3014 - MDO3SA - Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz and capture bandwidth to 3 GHz
- MDO3014 - MDO3SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO3014 - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO3014 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO3014 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO3014 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO3014 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO3014 - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MDO3014 - Opt. A10 - China power plug (50 Hz)
- MDO3014 - Opt. A11 - India power plug (50 Hz)
- MDO3014 - Opt. A12 - Brazil power plug (60 Hz)
- MDO3014 - Opt. A99 - No power cord
- MDO3014 - Opt. L0 - English front panel label
- MDO3014 - Opt. L1 - French front panel overlay
- MDO3014 - Opt. L2 - Italian front panel overlay
- MDO3014 - Opt. L3 - German front panel overlay
- MDO3014 - Opt. L4 - Spanish front panel overlay
- MDO3014 - Opt. L5 - Japanese front panel overlay
- MDO3014 - Opt. L6 - Portuguese front panel overlay
- MDO3014 - Opt. L7 - Simplified Chinese front panel overlay
- MDO3014 - Opt. L8 - Traditional Chinese front panel overlay
- MDO3014 - Opt. L9 - Korean front panel overlay
- MDO3014 - Opt. L10 - Russian front panel overlay
- MDO3014 - Opt. L99 - No manual, English front panel label
- MDO3014 - Opt. C3 - Calibration Service 3 Years
- MDO3014 - Opt. C5 - Calibration Service 5 Years
- MDO3014 - Opt. D1 - Calibration Data Report
- MDO3014 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO3014 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO3014 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO3014 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO3014 - Opt. R5 - Repair Service 5 Years (including warranty)
- MDO3014 - MDO3AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MDO3014 - MDO3AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MDO3014 - MDO3AUTO - Automotive Serial Triggering and Analysis Module (CAN and LIN)
- MDO3014 - MDO3COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO3014 - MDO3EMBD - Embedded Serial Triggering and Analysis Module (I2C and SPI)
- MDO3014 - MDO3FLEX - FlexRay Serial Triggering and Analysis Module
- MDO3014 - MDO3USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, high-speed)
- MDO3014 - MDO3PWR - Power Analysis Application Module
- MDO3014 - MDO3LMT - Limit and Mask Testing Application Module
- MDO3014 - MDO3BW1T24 - Bandwidth upgrade from 100 MHz to 200 MHz
- MDO3014 - MDO3BW1T34 - Bandwidth upgrade from 100 MHz to 350 MHz
- MDO3014 - MDO3BW1T54 - Bandwidth upgrade from 100 MHz to 500 MHz
- MDO3014 - MDO3BW1T104 - Bandwidth upgrade from 100 MHz to 1 GHz
- MDO3014 - MDO3BW2T34 - Bandwidth upgrade from 200 MHz to 350 MHz
- MDO3014 - MDO3BW2T54 - Bandwidth upgrade from 200 MHz to 500 MHz
- MDO3014 - MDO3BW2T104 - Bandwidth upgrade from 200 MHz to 1 GHz
- MDO3014 - MDO3BW3T54 - Bandwidth upgrade from 350 MHz to 500 MHz
- MDO3014 - MDO3BW3T104 - Bandwidth upgrade from 350 MHz to 1 GHz
- MDO3014 - MDO3BW5T104 - Bandwidth upgrade from 500 MHz to 1 GHz
| Model | MDO3014 |
|---|

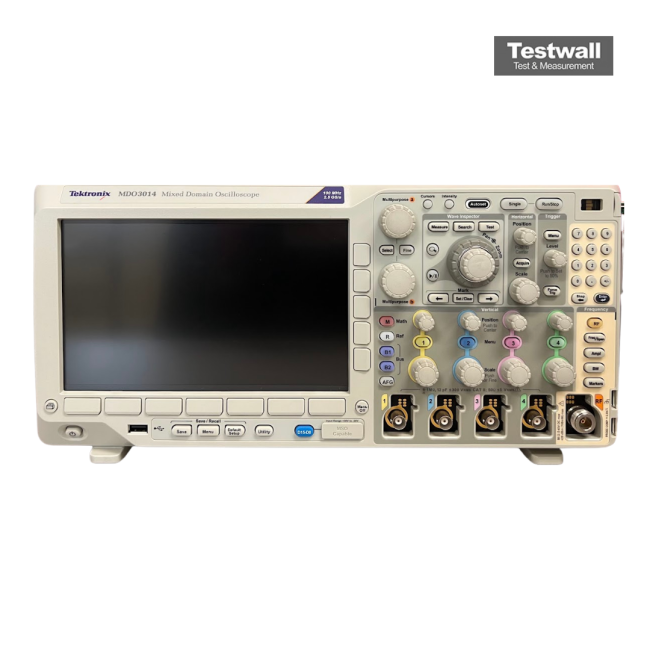

The Tektronix MDO3014 is a 100MHz, 4-channel Mixed Domain Oscilloscope offering 2.5 Gsps sample rate and a 10M points/channel record length. It features a 9-inch TFT LCD, supporting protocols including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB, with input impedance options of 1 MΩ, 50 Ω, and 75 Ω.
Ideal for bench use, the MDO3014 provides precision measurement with 1mV/div minimum vertical sensitivity, 8-bit resolution, and rise time of 3.5ns, making it suitable for complex signal analysis.
Testwall can supply the used Tektronix MDO3014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3014.
