Tektronix
Tektronix MDO4000
Mixed Domain Oscilloscope , 100 GHz- 500 MHz BW, 4+16 CH
200 MHz to 1 GHz (scalable with software upgrades) Bandwidth
4 channels Analog Input Channels
Up to 5 GS/s on all analog channels Sample Rate
20 M points standard on all channels Record Length
9 kHz to 3 GHz (RF input channel) Integrated Spectrum Analyzer Frequency Range
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz to 1 GHz (scalable with software upgrades) |
| Analog Input Channels | 4 channels |
| Sample Rate | Up to 5 GS/s on all analog channels |
| Record Length | 20 M points standard on all channels |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz (RF input channel) |
| Digital Channels | 16 digital channels (with optional logic analyzer module) |
| Vertical Resolution | 8-bit resolution (11-bit with Hi Res mode) |
| Display | 10.4-inch WVGA (1024 x 768) color display |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Connectivity | USB 2.0 host and device ports, LAN (LXI), GPIB (optional) |
Tektronix MDO4000 Options:
- MDO4000 - MDO4014-3 - Mixed Domain Oscilloscope with (4) 100 MHz analog channels, (16) digital channels, and (1) 3 GHz RF input
- MDO4000 - MDO4034-3 - Mixed Domain Oscilloscope with (4) 350 MHz analog channels, (16) digital channels, and (1) 3 GHz RF input
- MDO4000 - MDO4054-3 - Mixed Domain Oscilloscope with (4) 500 MHz analog channels, (16) digital channels, and (1) 3 GHz RF input
- MDO4000 - MDO4054-6 - Mixed Domain Oscilloscope with (4) 500 MHz analog channels, (16) digital channels, and (1) 6 GHz RF input
- MDO4000 - MDO4104-3 - Mixed Domain Oscilloscope with (4) 1 GHz analog channels, (16) digital channels, and (1) 3 GHz RF input
- MDO4000 - MDO4104-6 - Mixed Domain Oscilloscope with (4) 1 GHz analog channels, (16) digital channels, and (1) 6 GHz RF input
- MDO4000 - A0 - North America power plug (115 V, 60 Hz)
- MDO4000 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4000 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4000 - A3 - Australia power plug (240 V, 50 Hz)
- MDO4000 - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4000 - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MDO4000 - A10 - China power plug (50 Hz)
- MDO4000 - A11 - India power plug (50 Hz)
- MDO4000 - A12 - Brazil power plug (60 Hz)
- MDO4000 - A99 - No power cord
- MDO4000 - L0 - English manual
- MDO4000 - L1 - French manual
- MDO4000 - L2 - Italian manual
- MDO4000 - L3 - German manual
- MDO4000 - L4 - Spanish manual
- MDO4000 - L5 - Japanese manual
- MDO4000 - L6 - Portuguese manual
- MDO4000 - L7 - Simplified Chinese manual
- MDO4000 - L8 - Traditional Chinese manual
- MDO4000 - L9 - Korean manual
- MDO4000 - L10 - Russian manual
- MDO4000 - L99 - No manual
- MDO4000 - C3 - Calibration Service 3 Years
- MDO4000 - C5 - Calibration Service 5 Years
- MDO4000 - D1 - Calibration Data Report
- MDO4000 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4000 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4000 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO4000 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO4000 - R5 - Repair Service 5 Years (including warranty)
- MDO4000 - SILV900 - Standard warranty extended to 5 years
- MDO4000 - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MDO4000 - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MDO4000 - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN and LIN)
- MDO4000 - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, and FlexRay)
- MDO4000 - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO4000 - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C and SPI)
- MDO4000 - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T and 100BASE-TX)
- MDO4000 - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, and high-speed USB)
- MDO4000 - DPO4PWR - Power Analysis Application Module
- MDO4000 - DPO4LMT - Limit and Mask Testing Application Module
- MDO4000 - DPO4VID - HDTV and Custom (nonstandard) Video Triggering Module
- MDO4000 - MDO4TRIG - Advanced RF Power Level Triggering Module
| Model | MDO4000 |
|---|

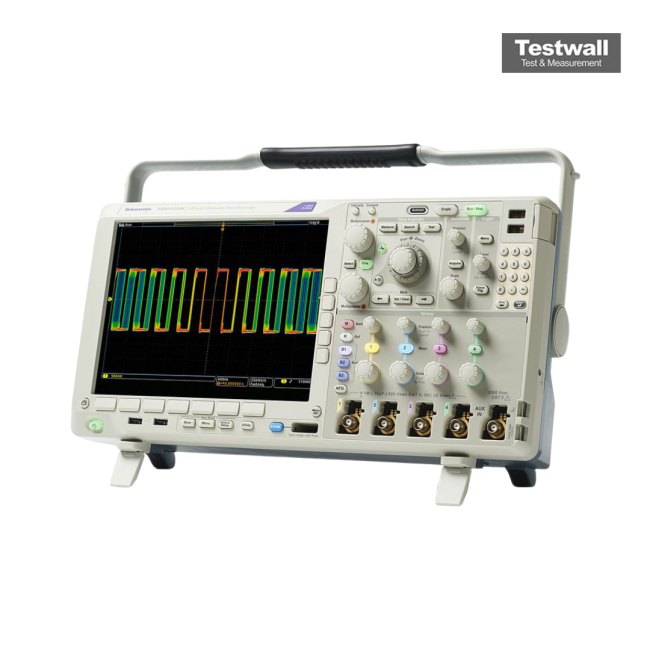

The Tektronix MDO4000 is the world’s first oscilloscope integrating logic, spectrum, and protocol analyzers. It features 4 analog channels, 16 digital channels, and a spectrum analyzer with 9 kHz–3 GHz or 6 GHz range, all synchronized for mixed-domain visibility.
Offering bandwidths from 100 MHz to 1 GHz, 20 M record length, >340,000 wfm/s capture rate, and automated serial analysis, it supports advanced debugging across embedded, RF, and digital designs.
Testwall can supply the used Tektronix MDO4000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4000.
