Tektronix

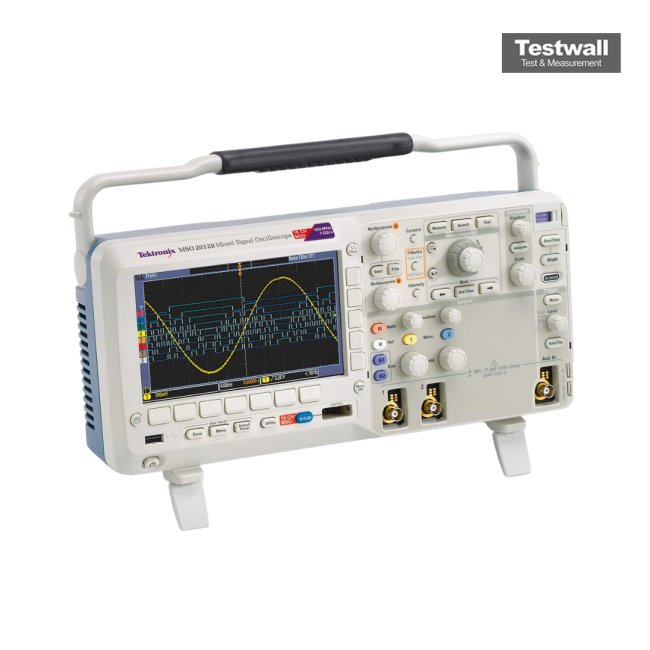

Tektronix MSO2012B
100MHz 1GS/s 2 Chan Mixed Signal DPO Scope
100 MHz Bandwidth
2 Analog Channels
16 Digital Channels
1 GS/s Sample Rate
1 M points Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 7-inch WVGA (800 x 480) TFT color display |
| Connectivity | USB 2.0 Host and Device ports, CompactFlash card slot |
| Model | MSO2012B |
|---|
The Tektronix MSO2012B is a high-performance Mixed Signal Digital Phosphor Oscilloscope featuring a 100 MHz bandwidth, 1 GS/s sample rate, and 2 analog channels, ideal for capturing fast signal dynamics and transient events.
It combines logic analysis with oscilloscope functionality, supporting complex embedded systems debug with digital timing and triggering precision.
Testwall can supply the used Tektronix MSO2012B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2012B.
