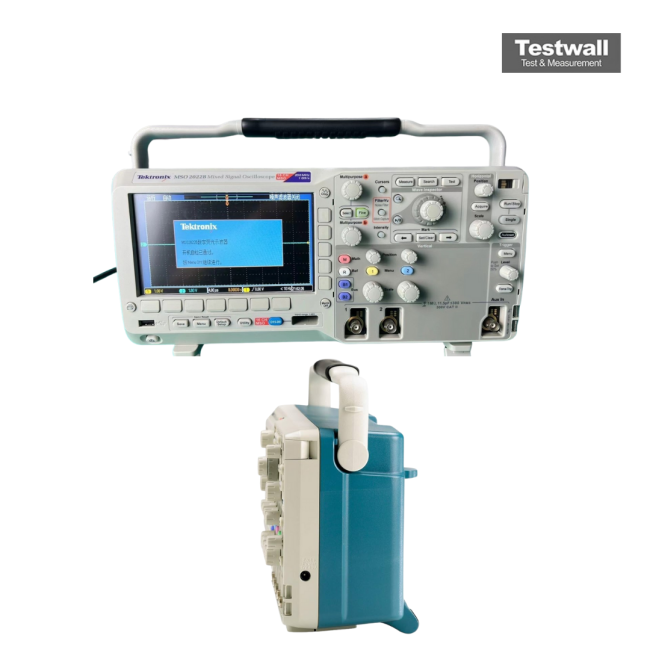

Tektronix MSO2022B
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 2.1 ns |
| Input Impedance | 1 MΩ |
| Display | 7-inch WVGA Color Display |
| Serial Bus Support | I2C, SPI, CAN, LIN, RS-232/422/485/UART |
| Model | MSO2022B |
|---|
The Tektronix MSO2022B 2 Channel 200MHz MSO Scope features two analog channels with 200MHz bandwidth, delivering precise mixed signal analysis capabilities. It combines a high sample rate, deep memory, and intuitive controls to ensure accurate signal capture and analysis across a wide range of applications. The device integrates both logic and analog channels, providing a complete view of system performance in real time.
Ideal for debugging embedded systems, analyzing serial buses, and performing mixed-domain analysis, this oscilloscope offers versatile triggering and decoding functions for efficient testing workflows.
Testwall can supply the used Tektronix MSO2022B 2 Channel 200MHz MSO Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2022B 2 Channel 200MHz MSO Scope.
