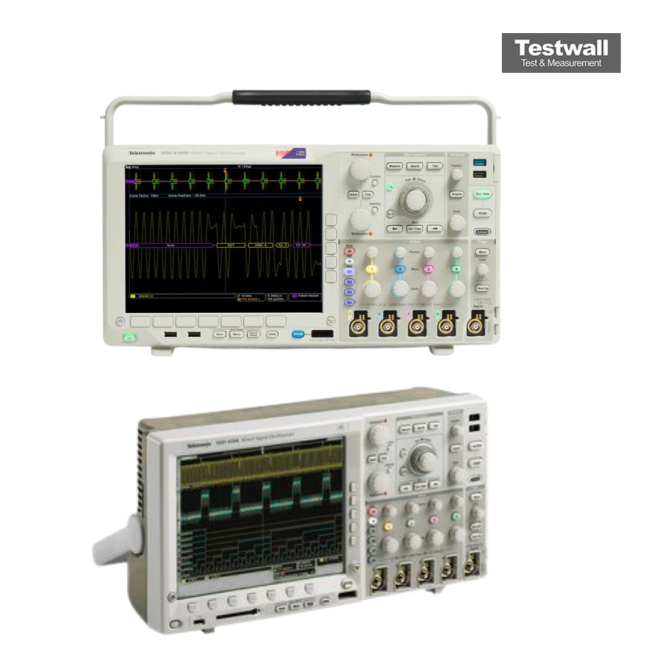

Tektronix MSO4104
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 350 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4 inch color TFT LCD |
| Waveform Capture Rate | Up to 250,000 waveforms/second |
Tektronix MSO4104 Options:
Options available for the Tektronix DPO/MSO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO4104 - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO4104 - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO4104 - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO4104 - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MSO4104 - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO4104 - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO4104 - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO4104 - DPO4USB - USB 2.0 serial triggering and analysis
- MSO4104 - DPO4LMT - Limit and mask testing
- MSO4104 - DPO4PWR - Power measurement and analysis
- MSO4104 - DPO4VID - Extended video triggering
- MSO4104 - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix MSO4104 is a high-performance 1 GHz bandwidth, 4+16 channel Mixed Signal Oscilloscope designed for precise signal analysis. With 5 GS/s sample rate on all channels and 10M record length, it delivers exceptional signal fidelity. Integrated Wave Inspector®, automated measurements, and serial bus analysis tools simplify debugging and enhance design accuracy.
Ideal for troubleshooting, testing, and design validation, the MSO4104 supports up to 20 signal channels, including 16 digital lines, providing deep insights into analog and digital behaviors with high-speed acquisition and analysis.
Testwall can supply the used Tektronix MSO4104, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO4104.
