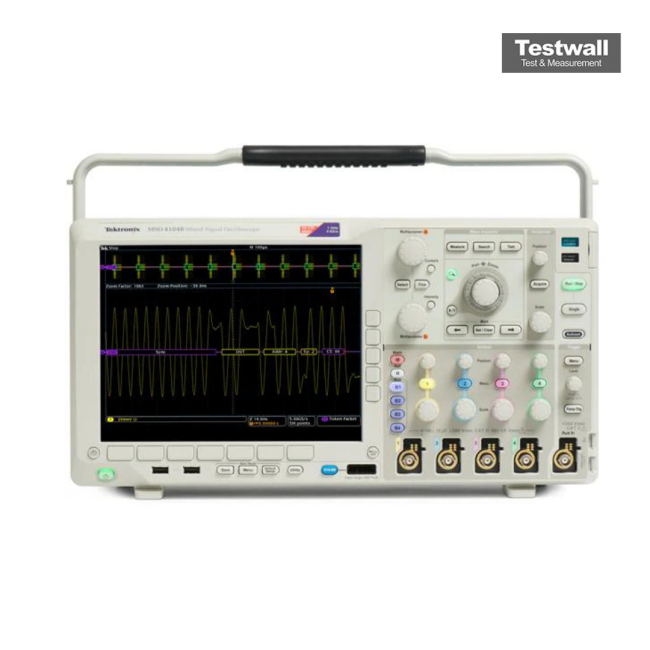

Tektronix MSO4104B-L
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 5 GS/s |
| Record Length | 250 M points (with -L option) |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Rise Time | 350 ps |
| Waveform Capture Rate | Up to 340,000 waveforms/second |
| Display | 10.4-inch WVGA color display |
| Serial Triggering and Analysis | Supports I2C, SPI, CAN, LIN, RS-232/422/485/UART |
Tektronix MSO4104B-L Options:
Options available for the Tektronix DPO/MSO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO4104B-L - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO4104B-L - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO4104B-L - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO4104B-L - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MSO4104B-L - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO4104B-L - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO4104B-L - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO4104B-L - DPO4USB - USB 2.0 serial triggering and analysis
- MSO4104B-L - DPO4LMT - Limit and mask testing
- MSO4104B-L - DPO4PWR - Power measurement and analysis
- MSO4104B-L - DPO4VID - Extended video triggering
- MSO4104B-L - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix MSO4104B-L 1GHz 5GS/s 4 Channel Mixed Signal DPO Scope offers advanced 1GHz bandwidth and a 5GS/s sample rate across four analog channels, ensuring precise capture and analysis of complex waveforms. Its mixed signal capability allows measurement of up to 16 digital channels simultaneously, combined with a large, high-resolution display and powerful triggering functions for efficient debugging.
Ideal for high-speed digital and analog applications, it supports serial bus decoding, automated measurements, and comprehensive waveform analysis, making it a versatile tool for R&D, education, and production testing.
Testwall can supply the used Tektronix MSO4104B-L 1GHz 5GS/s 4 Channel Mixed Signal DPO Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO4104B-L 1GHz 5GS/s 4 Channel Mixed Signal DPO Scope.
