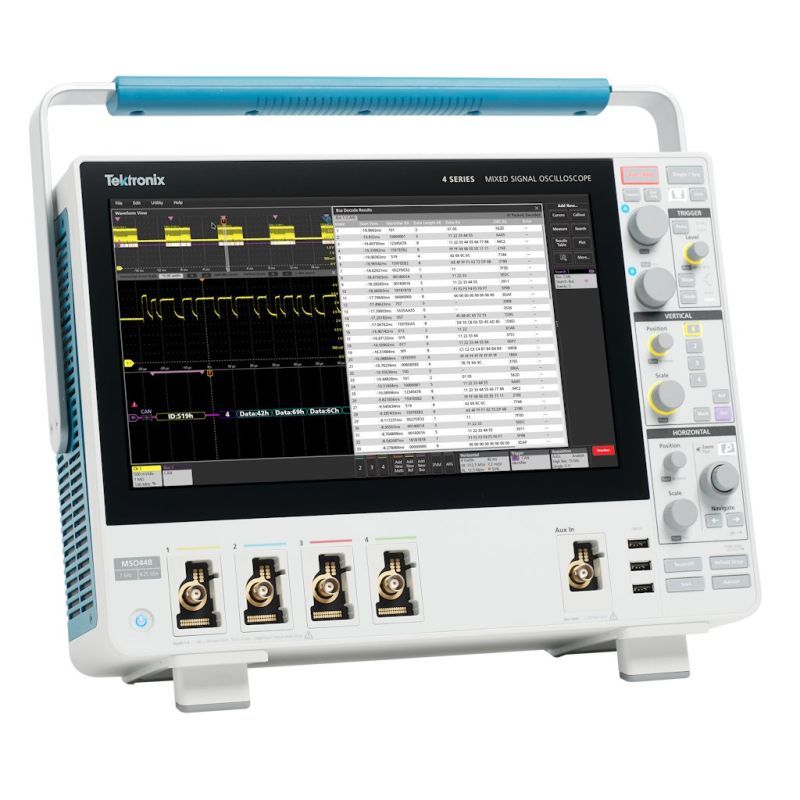

Tektronix MSO44B 4-BW-500
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz (option 4-BW-500) |
| Number of Analog Channels | 4 FlexChannel inputs |
| Digital Channels | Up to 32 (with TLP058 FlexChannel logic probes) |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points standard (62.5 M optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | > 500,000 waveforms per second |
| Series | Tektronix 4 Series B MSO |
The Tektronix MSO44B 4-BW-500 is the 500 MHz bandwidth configuration of the MSO44B, a 4-channel 4 Series B MSO. It samples at 6.25 GS/s with a 12-bit ADC (up to 16-bit in High Res mode), and offers 31.25 M points record length as standard. The 4 Series B MSO is the updated 4 Series with a faster processor platform and improved responsiveness, keeping FlexChannel inputs, a 13.3-inch HD touchscreen and Spectrum View.
Bandwidth on the 4 Series B MSO is set by software option, so the MSO44B can be ordered at 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz. This listing is for the 500 MHz unit (option 4-BW-500). If you need a different bandwidth, see the MSO44B overview page for all configurations.
Testwall can supply the used Tektronix MSO44B 4-BW-500, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix MSO44B.
