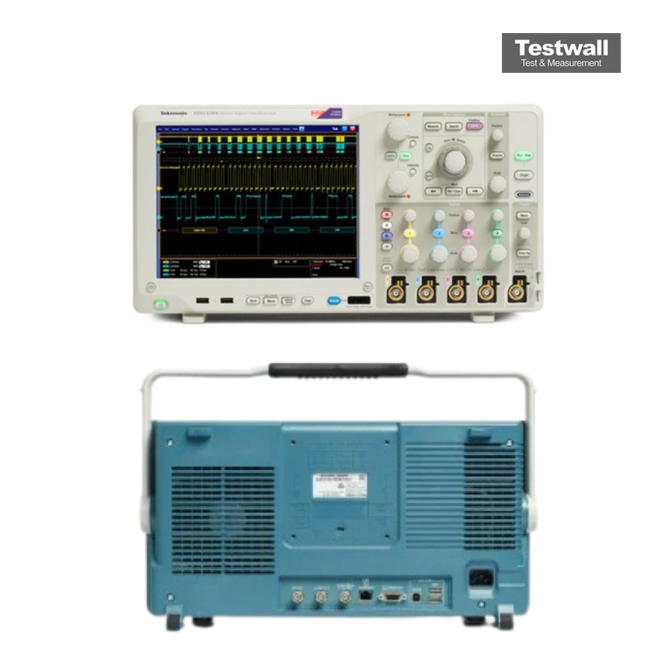

Tektronix MSO5034
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 3.125 GS/s |
| Record Length | 31.25 M points |
| Vertical Resolution | 12-bit ADC |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Serial Bus Decode/Trigger Support | I2C, SPI, RS-232/422/485/UART, USB, CAN, LIN, FlexRay, MIL-STD-1553, SENT, I3C |
| Connectivity | USB Host, USB Device, LAN (LXI), DisplayPort |
Tektronix MSO5034 Options:
Options available for the Tektronix DPO/MSO5000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO5034 - 5RL - Record length extension to 50 M points per channel
- MSO5034 - 10RL - Record length extension to 125 M points per channel
- MSO5034 - SR-AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO5034 - SR-DPHY - MIPI D-PHY (DSI-1, CSI-2) serial analysis
- MSO5034 - MTM - Mask testing (telecom, data and video standards)
- MSO5034 - BRR - BroadR-Reach automotive Ethernet compliance
- MSO5034 - HSIC - USB HSIC decode and electrical validation
- MSO5034 - MOST - MOST50 / MOST150 electrical compliance and debug
- MSO5034 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MSO5034 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO5034 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO5034 - SR-ENET - Ethernet serial analysis (10BASE-T, 100BASE-TX)
- MSO5034 - SR-USB - USB 2.0 serial triggering and analysis
- MSO5034 - DJA - DPOJET advanced jitter and eye diagram analysis
- MSO5034 - DDRA - DDR memory bus analysis (requires DJA)
- MSO5034 - PWR - Power measurement and analysis (DPOPWR)
- MSO5034 - ET3 - Ethernet compliance testing (10/100/1000BASE-T)
The Tektronix MSO5034 Digital Phosphor Oscilloscope combines a 350MHz bandwidth with 4 input channels and advanced debugging tools, enabling detailed analysis of up to 20 analog and digital signals. It features Wave Inspector® controls, 53 automated measurements, FFT, histograms, and a FastAcq™ capture rate >250,000 wfms/s. An 8-bit vertical resolution (expandable to >11 bits) and 1 ns rise time enhance signal clarity for high-speed, mixed-signal applications.
This scope includes USB, LAN, and video out connectivity, a 10.4” touch display, and removable HDD. With optional serial decoding, vehicle bus monitoring, and technology-specific analysis tools, it supports I2C, SPI, CAN, LIN, and more.
Testwall can supply the used Tektronix MSO5034, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO5034.
