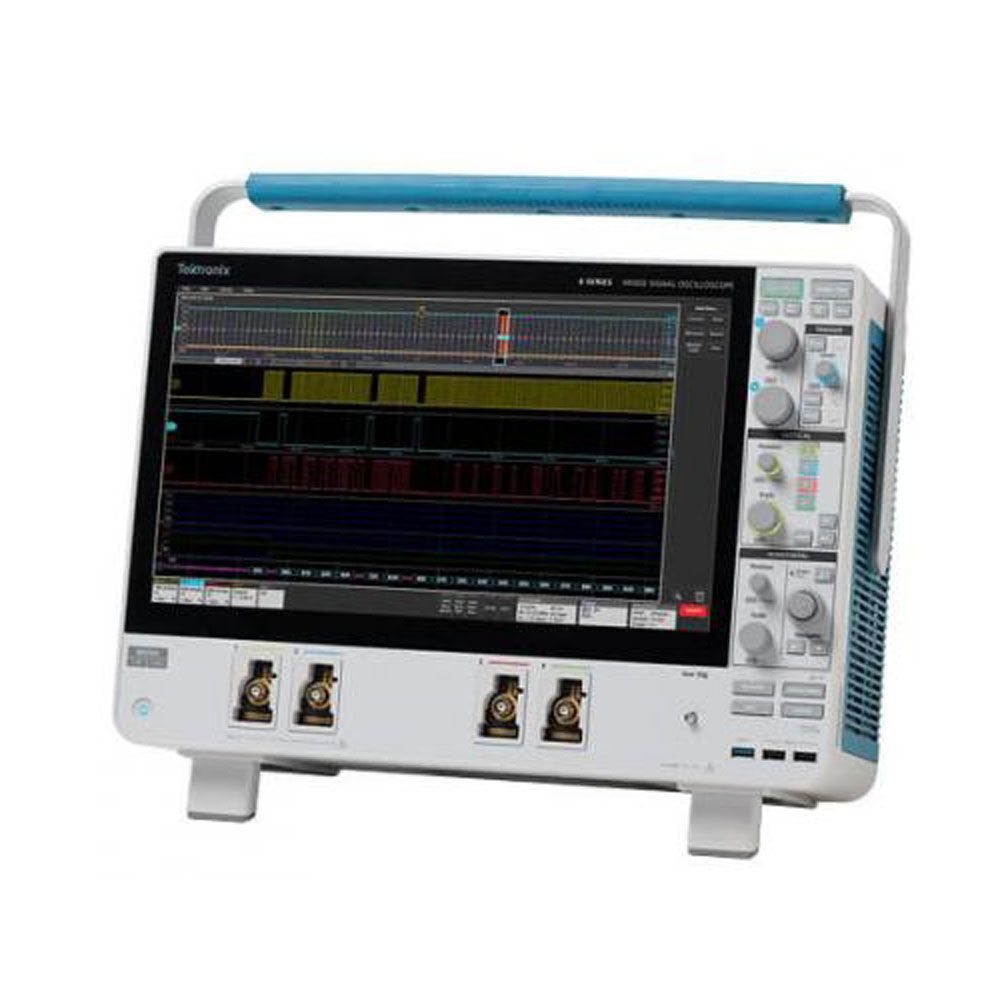

Tektronix MSO64 6-BW-2500
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz (option 6-BW-2500) |
| Number of Analog Channels | 4 FlexChannel inputs |
| Digital Channels | Up to 32 (with TLP058 FlexChannel logic probes) |
| Sample Rate | 25 GS/s on all channels |
| Record Length | 62.5 M points standard (up to 1 G optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | > 500,000 waveforms per second |
| Series | Tektronix 6 Series MSO |
The Tektronix MSO64 6-BW-2500 is the 2.5 GHz bandwidth configuration of the MSO64, a 4-channel 6 Series MSO. It samples at 25 GS/s on all channels with a 12-bit ADC (up to 16-bit in High Res mode), and offers 62.5 M points record length as standard. The 6 Series MSO is a high-performance, low-noise mixed signal oscilloscope with 25 GS/s sampling on all channels, FlexChannel inputs and a 15.6-inch HD touchscreen.
Bandwidth on the 6 Series MSO is set by software option, so the MSO64 can be ordered at 1 GHz, 2.5 GHz, 4 GHz, 6 GHz, 8 GHz. This listing is for the 2.5 GHz unit (option 6-BW-2500). If you need a different bandwidth, see the MSO64 overview page for all configurations.
Testwall can supply the used Tektronix MSO64 6-BW-2500, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix MSO64.
