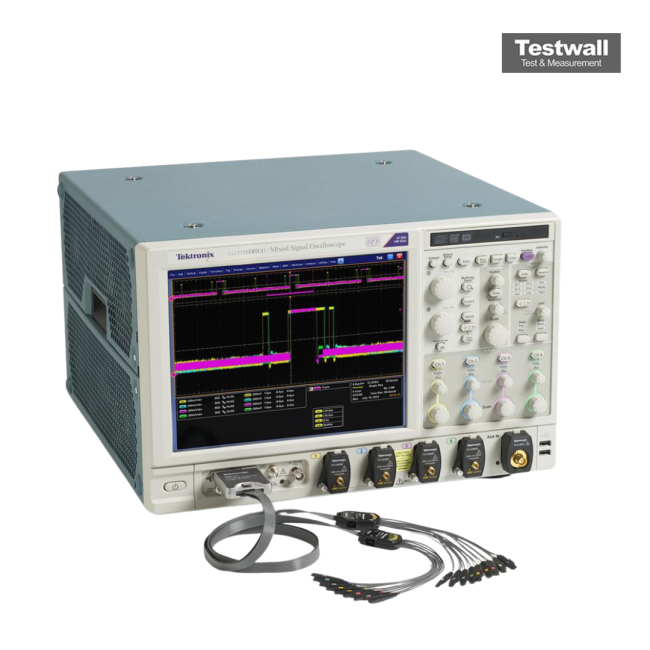

Tektronix MSO71604DX
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Sample Rate | 50 GS/s on all channels simultaneously |
| Number of Channels | 4 analog channels + 16 digital channels (mixed signal) |
| Record Length | Up to 250 million points |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | ≤ 21.9 ps |
| Input Impedance | 50 Ω and 1 MΩ |
| Operating System | Windows 7 (64-bit) |
| Display | 15.3-inch XGA color display (1024 x 768 resolution) |
| Connectivity | USB, GPIB, LAN (LXI compliant) |
| Model | MSO71604DX |
|---|
The Tektronix MSO71604DX 4 Channel 16GHz 100GS/s MSO delivers outstanding performance with 4 analog channels, a bandwidth of 16 GHz, and a sampling rate of 100 GS/s. It features advanced mixed signal capabilities, enabling precise analysis of both analog and digital signals simultaneously. The system offers deep memory for long signal captures, high waveform capture rates, and an intuitive touch-screen interface for efficient operation.
Ideal for high-speed serial data analysis, signal integrity testing, and debugging complex embedded systems, this MSO supports a range of probing solutions and analysis tools for accurate diagnostics.
Testwall can supply the used Tektronix MSO71604DX 4 Channel 16GHz 100GS/s MSO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO71604DX 4 Channel 16GHz 100GS/s MSO.
