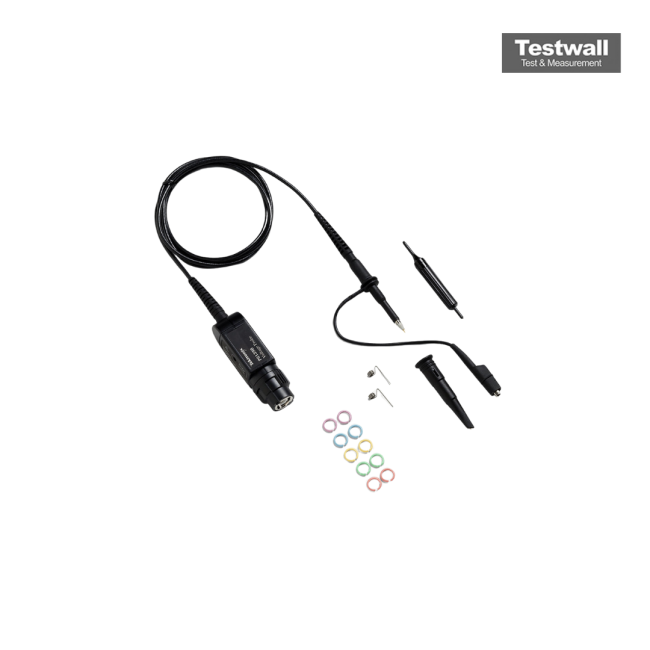

Tektronix P5050B
Passive Probe, 500 MHz 10X
500 MHz Bandwidth
10X Attenuation Ratio
10 MΩ Input Resistance
12.7 pF (with compensation range 8–18 pF) Input Capacitance
300 V RMS CAT II Maximum Input Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 12.7 pF (with compensation range 8–18 pF) |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 700 ps |
| Cable Length | 1.2 m (4 ft) |
| Connector Type | BNC |
| Compensation Frequency Range | 1 kHz |
| Compatible Oscilloscope Series | Tektronix TDS, TPS, and MDO/MSO/DPO Series Oscilloscopes |
Tektronix P5050B Options:
- P5050B - 016-2034-xx - Short ground spring
- P5050B - 196-3512-xx - 12" alligator ground lead
- P5050B - 196-3198-xx - 6" clip-on ground lead
- P5050B - 013-0363-xx - Micro hook tip
- P5050B - 206-0569-xx - MicroCKT test tip
- P5050B - 020-3045-xx - 32AWG spool wire
- P5050B - 013-0367-xx - BNC to probe tip adapter; unterminated
- P5050B - 016-2016-xx - PCB to probe tip adapter
- P5050B - 131-8831-xx - Compact probe tip chassis mount test jack
- P5050B - 206-0636-xx - P5050B replacement tip
| Model | P5050B |
|---|
The Tektronix P5050B is a 500 MHz passive voltage probe featuring 10X attenuation, 10 MΩ input resistance, and 8 pF input capacitance. With a compact probe head, 1.3 m cable, and replaceable tip cartridges, it ensures safe and precise probing of small circuit elements at up to 300 V CAT II.
Its compatibility with Tektronix scopes and support for compensation ranges from 16 pF to 22 pF make it ideal for service, R&D, and low-power device testing.
Testwall can supply the used Tektronix P5050B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5050B.
